TORQ LOK

More Views

TORQ LOK
TORQ LOK - EPOXY THREAD LOCKING COMPOUND.
Available package:
- 2 oz. = 56gms
- 1oz. = 28gms

  • TORQLOK MSDS

    Torqlok MSDS

  • CTORQLOK TECHNICAL BULLETIN

    Technical Bulletin

Description

Details

BUY Torq Lok on Drilling Supply Store

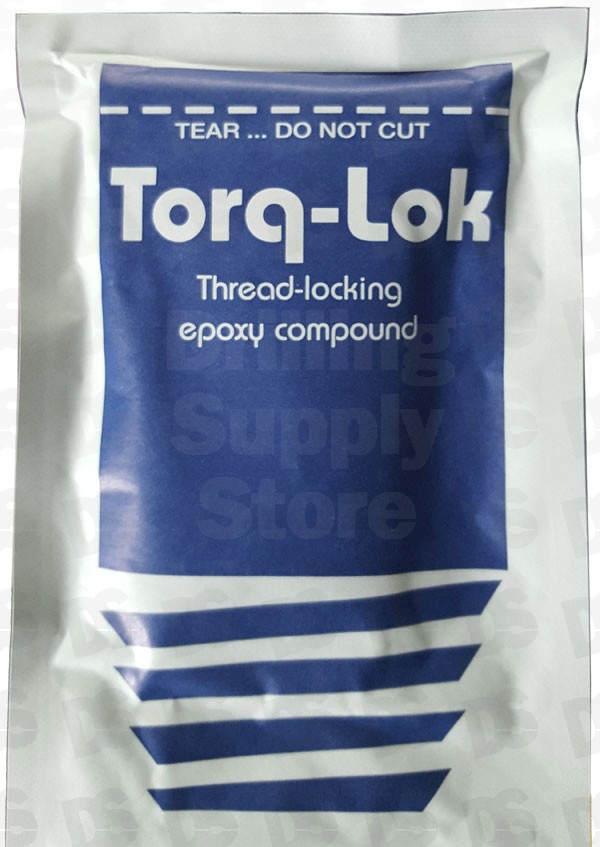

TorqLok is an epoxy based metal adhesive. Conveniently packaged in the EPOXY PAX, TorqLok is preformulated to the exact mix ratio, eliminating any weighing or mixing. TorqLok is recommended for bonding all threaded and sleeve type applications where welding is undesirable. This system will withstand break-out torques twice as great as normally recommended make-up torques. TorqLok will withstand continuous vibrations and heavy shock loads. TorqLok is impervious to oil, petroleum solvents, gasoline, alcohols, acids, alkalis and salts. TorqLok also prevents galling of threads.

BREAK-OUT:
Break-out procedures should be performed in a well ventilated area. The use of a NIOSH approved cartridge mask is recommended. Heat connection evenly to 400oF and apply recommended break-out torque. Remove any residual TorqLok with a motorized wire brush.

DIRECTIONS:

To use the EPOXY PAX, pull both ends of packet to remove clip. Mix contents thoroughly until a uniform mixture is obtained. Snip end of packet to dispense contents to connection that has been thoroughly cleaned with non-petroleum based solvent, such as acetone or MEK.

PHYSICAL PROPERTIES:

  • Color - Part A-Gray, Part B-Red
  • Hardness (Shore D) - 89
  • Viscosity (cps) - 50,000
  • Shear Load (Ft.lbs.) - 160
  • Work Life (75oF) - 10 minutes
  • Coefficient of Friction - .096
  • Friction Factor - 1.20 - 1.25
  • Cure Schedule (for optimum cure) - 24 hours at 75oF, 1 hour at 150oF
  • Lap Shear (psi) - 2550
  • Specific Gravity (grams/cc) - 1.53
