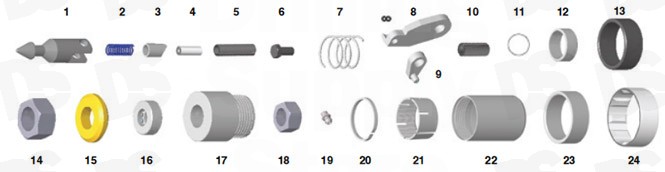

BQ™ Core Barrel SPARE PARTS KIT

Product Name	Qty	Part Number
Compression Spring		15141
Landing Shoulder		306421
Latch		306417
Inner Tube Stabilizer		44406
Stop Ring		24831
Stainless Steel Ball, 22mm		62374
Spindle Bearing		24336
Detent Plunger		42914
Hex Nut		44601
Link		306418
Sping Pin 3/8"x 1-3/4"		23941
Core Lifter		30487
Landing Indicator Bushing		62380
Stover Lock Nut		103144
Spirol Pin 7/16"x 1"		42905
Shut-off Valve, Hard		44208
Spearhead Point		42913
Spring Pin 3/8"x 1-1/4"		23944
Latch Compression Spring		3543180
Landing Ring		24345
FITTING, HYD GREASE		17447
Core Lifter Case		24830
Nyloc Bolt 3/8"- 16UNC x3/4"		3541932
Thrust / Hanger Bearing		24030
