Drilling Supply Range of Stabilizer with Internal .

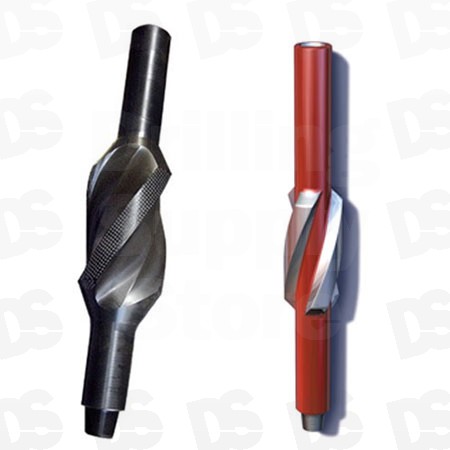

All stabilizers are manufactured with premium alloy steel - featuring heat treated tool joints. We also apply hard facing to all of the wear surfaces on the stabilizer. We manufacture both integral and welded stabilizers straight or spiral ribs or alternatively smooth/(slick) design Welded stabilizers constructed where each rib is individually hand welded onto the stabilizer to ensure maximum strength and efficiency. DS stabilizers are manufactured from a thick walled alloy steel pipe. We can create any thread and accommodate any size OD. All stabilizers are manufactured from premium chrome moly alloy steel, heat treated using procedures that obtain maximum hardness, strength and impact value properties. Threads are machined in strict accordance with API Spec. Hard banding of stabilizer employ’s "pressed in" Tungsten Carbide alloy buttons or carbaloy anti-wear materials. All stabilizers should be ultrasonic tested.
Please specify with your order:
- Hole Size or blade OD
- Desired # of Blades
- Straight or Spiral Design
- Hard facing and type TC or Borium
- Top and Bottom connections
- Body Diameter
- Drill String or near Bit application
- Special features - non magnetic body –blades – bored stress relief groove
OD | Body OD (mm) | Body ID (mm) | Length (mm) | Top Thread | Down Thread |
6 - 6 1/2 " | .121 | 51 | 785 | Stabilizer Working O.D. | 3 1/2 |
7 - 7 7/8" | .159 | 57 | 850 | 4 ½ IF | 4 1/2 |
8 - 8 1/2" | 165 | 71 | 850 | 4 ½ IF | 4 1/2 |
9 - 9 1/4" | .197 | 71 | 870 | 4 ½ IF | 6 5/8 Reg |
12 - 12 1/4" | .203 | 76 | 940 | 6 5/8 Reg | 6 5/8 Reg |
