Details

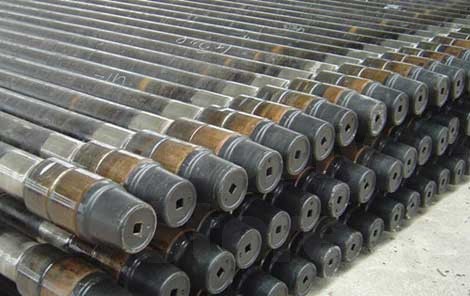

Drilling Supply Range of Drill Pipe – Carbide Banding Available.
We provide custom length drill pipe in alternative wall thicknesses as listed, thread connectionsand breakout configurations milled to customer specification.
| OD | Wall | Length | Thread | Flats | Lugs |
| 2 3/8" | .190, .254, .280 | 1.5M, 5', 2M, 3M, 10', 15', 20', 25' | 2IF, 2 3/8 M Jr | Y | Y |
| 2 7/8" | .217, .276, .362 | same | 2 3/8 M Jr, 2 3/8 reg, 2 3/8 M Reg, 2 3/8 IF, 2 7/8 2 3/8 M Reg, 2 3/8IF | Y | Y |
| 3" | .156, .188, .250, .375 | same | 2 3/8 Reg, | Y | Y |
| 3 1/2" | .219, .254, .368, .449 | same plus 30' | 2 3/8 Reg, 2 3/8IF | Y | N |
| 4" | .250, .330, .380, .500 | same plus 30' | 2 7/8IF, 3 1/2 Reg, 3 1/2 FH | Y | N |
| 4 1/2" | .250, .271, .291, .337, .430, .500, .750 | same plus 30' | 2 7/8IF, 3 1/2 Reg, 3 1/2 FH | Y | N |
| 5" | .296, .362, .500, .750 | same plus 30' | 3 1/2 IF | Y | N |
| 5 1/2" | .362, ..478, .500 | same plus 30' | 3 1/2IF, 4 1/2 Reg, 4IF, 4FH | Y | N |
| 6 5/8" | .330, .362, .475 | same plus 30' | 4 1/2 IF, 8 1/2 FF | Y | N |
| 7" | .362, .498 | same plus 30' | 4 1/2 IF, 8 1/2 FF | Y | N |
