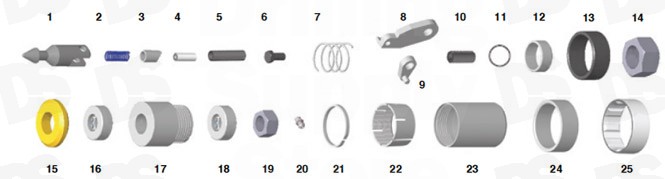

Boart Longyear HQ™ Core Barrel SPARE PARTS KIT

Nyloc Bolt 3/8"- 16UNC x3/4"

Core Lifter Slotted

Detent Plunger

Spindle Bearing

Hex Nut

Latch

FITTING, HYD GREASE

Stainless Steel Ball, 22mm

Core Lifter Case

Spirol Pin 7/16"x 1"

Stover Lock Nut

Shut-off Valve, Hard

Spearhead Point

Link

Spring Pin 1/2"x 2 3/4"

Landing Indicator Bushing

Landing Ring

Spring Pin 1/2" x 2"

Stop Ring

Thrust Bearing

Compression Spring

Landing Shoulder

Latch Compression Spring

Hanger Bearing

Inner Tube Stabilizer
