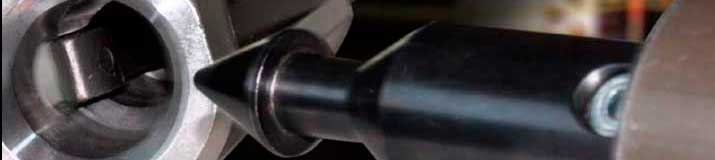

Compact Overshot
H Compact Wireline Overshot | |||||
PART LIST | |||||
Item | Description | Part Number | Qty | ||
H Compact Wireline Overshot | |||||
1-20 | Overshot Assembly | BB00000102 | — | ||
1 | Wire Rope Thimble | BA00000349 | 1 | ||
2 | Eye Bolt | BA00000346 | 1 | ||
3 | Cable Swivel Collar | BA00000343 | 1 | ||
4 | Bearing | BA00000352 | 1 | ||
5 | Castle Nut | BA00000353 | 1 | ||
6 | Cotter Pin | BA00000356 | 1 | ||
7 | Grease Fitting | BA00000134 | 1 | ||
8 | Cable Swivel Body | BA00000366 | 1 | ||
9 | Jar Staff | BB00000090 | 1 | ||
10 | Jar Tube | BB00000091 | 1 | ||
11 | Release Sleeve | BA00000362 | 1 | ||
12 | Nord-lock Washer | BB00000095 | 1 | ||
13 | Hex Nut | BB00000094 | 1 | ||
14 | Set Screw, 3/8 UNF x 3/4 Nyloc | BA00000344 | 1 | ||
15 | Compression Spring | BA00000348 | 1 | ||
16 | Lifting Dog | BA00000515 | 2 | ||
17 | Pin 1/2" x 2-1/8" | BB00000164 | 1 | ||
18 | Spring Pin 1/4" x 2" | BB00000165 | 1 | ||
19 | Safety Pin | BF00002327 | 1 | ||
20 | Overshot Head | BB00000163 | 1 | ||
N Compact Wireline Overshot | |||||
1-20 | Overshot Assembly | BB00000089 | — | ||
1 | Wire Rope Thimble | BA00000349 | 1 | ||
2 | Eye Bolt | BA00000346 | 1 | ||
3 | Cable Swivel Collar | BA00000343 | 1 | ||
4 | Bearing | BA00000352 | 1 | ||
5 | Castle Nut | BA00000353 | 1 | ||
6 | Cotter Pin | BA00000356 | 1 | ||
7 | Grease Fitting | BA00000134 | 1 | ||
8 | Cable Swivel Body | BA00000366 | 1 | ||
9 | Jar Staff | BB00000090 | 1 | ||
10 | Jar Tube | BB00000091 | 1 | ||
11 | Release Sleeve | BA00000362 | 1 | ||
12 | Nord-lock Washer | BB00000095 | 1 | ||
13 | Hex Nut | BB00000094 | 1 | ||
14 | Set Screw, 3/8 UNF x 3/4 Nyloc | BA00000344 | 1 | ||
15 | Compression Spring | BA00000348 | 1 | ||
16 | Lifting Dog | BA00000515 | 2 | ||
17 | Pin 1/2" x 1-13/16" | BA00000361 | 1 | ||
18 | Spring Pin 1/4" x 1-3/4" | BA00000504 | 1 | ||
19 | Safety Pin | BF00002327 | 1 | ||
20 | Overshot Head | BB00000096 | 1 |
