NX-NTT-NW

DIAMOND PRODUCTS - NX/NTT/NW SYSTEMS


RV300 series wedging bits - NX size
Size	Series	Step	Crown	Description	Item
			height
NX	12	Navi	10 mm	Navi bit NX RV300-12 (BW rod Thread)	BF00004692
NX	13	Navi	10 mm	Navi bit NX RV300-13 (BW rod Thread)	BF00005866
NX				Navi bit NX RV300	BF00004732
NX				Bullnose Bit NX RV300 EEE S/S (N rod Thread)	BF00005865


RV400 series impregnated bits - NTT size

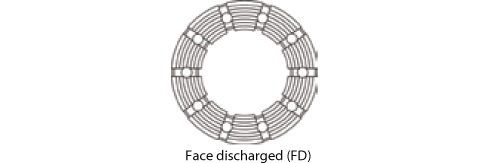

Size	Series	Face	Crown	Description	Item
		design	height
NTT	02	FD	12 mm	Core Bit NTT RV400-02 12 FD	BF00004357
NTT	04	FD	12 mm	Core Bit NTT RV400-04 12 FD	BF00004359
NTT	06/07	FD	12 mm	Core Bit NTT RV400-06/07 12 FD	BF00004360
NTT	08/09	FD	12 mm	Core Bit NTT RV400-08/09 12 FD	BF00004361
NTT	09/11	FD	12 mm	Core Bit NTT RV400-09/11 12 FD	BF00004362
NTT	12	FD	12 mm	Core Bit NTT RV400-12 12 FD	BF00004364
NTT	12/14	FD	12 mm	Core Bit NTT RV400-12/14 12 FD	BF00005390
NTT	13	FD	10 mm	Core Bit NTT RV400-13 10 FD	BF00004717
NTT	14	FD	10 mm	Core Bit NTT RV400-14 10 FD	BF00004716


RV700 series casing and spud shoes - NW size
Size	Type	Description	Item

NW	Casing shoe	Casing Shoe NW RV700-09	BF00004472
NW	Casing shoe	Casing Shoe NW RV705	BF00005869
