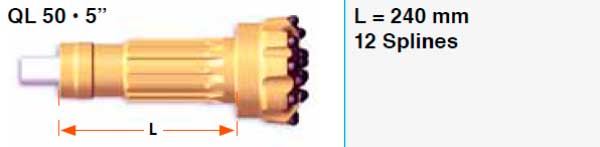

QL 50

Bit shank identifcation chart

Bit shank identifcation chart

Diameter
Air
holes
Gauge
buttons
Button dia. mm
Weight
Part No.

Shank
mm
inch
gauge
front
Kg
lb
QL50

Concave face / Ballistic button
QL 50
140 5 1/2 2 8 16 14 15,0 33 42-5519140-R48
140 5 1/2 2 8 16 14 15,0 33 42-5519140-R55
146 5 3/4 2 8 16 14 16,0 35 42-5519146-R48
146 5 3/4 2 8 16 14 16,0 35 42-5519146-R55
Concave face / Spherical button
130 5 1/8 2 8 16 13 13,9 31 42-5518130-S48
133 5 1/4 2 8 16 13 14,3 31 42-5518133-S48
140 5 1/2 2 8 16 14 15,0 33 42-5519140-S48
140 5 1/2 2 8 16 14 15,0 33 42-5519140-S65
146 5 3/4 2 8 16 14 16,0 35 42-5519146-S48
146 5 3/4 2 8 16 14 16,0 35 42-5519146-S65
152 6 2 8 16 16 17,1 38 42-551D152-S48
Convex face / Ballistic button
130 5 1/8 3 9 16 14 13,9 31 42-55L9130-R48
133 5 1/4 3 9 16 14 14,3 31 42-55L9133-R48
140 5 1/2 3 9 16 16 15,0 33 42-55LC140-R48
140 5 1/2 3 9 16 16 15,0 33 42-55LC140-R55
146 5 3/4 3 9 16 16 16,0 35 42-55LC146-R48
146 5 3/4 3 9 16 16 16,0 35 42-55LC146-R55
152 6 3 9 16 16 17,1 38 42-55LD152-R48
Flat face / Spherical button
130 5 1/8 2 8 16 14 13,9 31 42-55F9130-S48
133 5 1/4 2 8 16 14 14,3 31 42-55F9133-S48
140 5 1/2 3 9 16 14 15,0 33 42-5529140-S48
140 5 1/2 3 9 16 174 15,0 33 42-5529140-S65
146 5 3/4 3 9 16 14 16,0 35 42-5529146-S48
146 5 3/4 3 9 16 14 16,0 35 42-5529146-S65
152 6 3 9 18 16 17,1 38 42-552D152-S48
Convex face / Ballistic and Spherical button
140 5 1/2 3 9 16 16 15,0 33 42-55LC140-L55**
146 5 3/4 3 9 16 16 16,0 35 42-55LC146-L55**
**Convex face with spherical gauge buttons and ballistic front buttons
