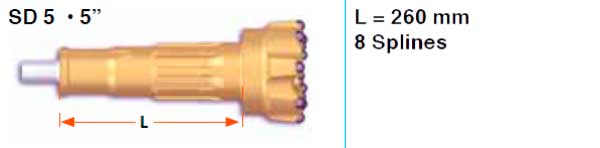

SD 5
Bit shank identifcation chart
| Sandvik RH550 | Diameter | Air holes | Gauge buttons | Button dia. mm | Weight | Part No. | Shank | ||||
mm | inch | gauge | front | Kg | lb | ||||||
SD 5 | |||||||||||
| Concave face / Spherical button | SD 5 | ||||||||||
 | 130 | 5 1/8 | 2 | 8 | 16 | 14 | 13,0 | 29 | 42-5119130-S48 |  | |
| 133 | 5 1/4 | 2 | 8 | 16 | 14 | 14,0 | 31 | 42-5119133-S48 | |||
| 140 | 5 1/2 | 2 | 8 | 16 | 14 | 15,0 | 33 | 42-5119140-S48 | |||
| 146 | 5 3/4 | 2 | 8 | 16 | 14 | 16,0 | 35 | 42-5119146-S48 | |||
| **Convex face with spherical gauge buttons and ballistic front buttons | |||||||||||
| Foot valve | 0,5 | 1.2 | 47-51017 | ||||||||
 | |||||||||||
| AVAILABLE SHANKS | ||||||
