Sandvik DTH DRILLING TOOLS
Click on the Part number to see part description  |

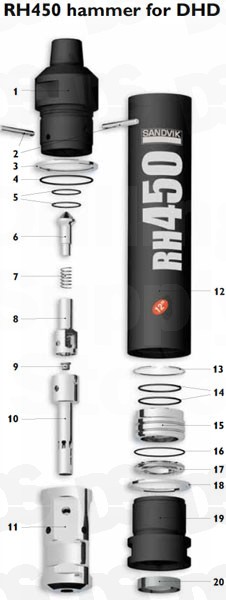

Replacement parts item description | Weight | Part № |
| kg | lb | |
1. Top Subs with 3 O-Rings
| | | |
6 5/8” API Reg. Pin | 118 | 260 | 33-1B001/39A |
2. Feed Tube Retainer Pin (2) | 0.9 | 1.9 | 12-99019 |
3. Break out Ring, upper | 2.7 | 6.0 | 15-1B001-01 |
4. O-Ring Top Sub | | | In Seal Kit |
5. O-Rings Feed Tube (2) | | | In Seal Kit |
6. Check Valve Dart | 3.5 | 7.8 | |
7. Check Valve Spring | 0.1 | 0.3 | |
8. Check Valve Guide | 3.1 | 6.8 | |
9. Choke Set, Blank 1/4”, 3/8”, & 1/2” | 0.2 | 0.5 | 29-1B017A |
10. Feed Tube w. Ret. Pins, Choke & O-Rings | 7.7 | 1.7 | 37-1B001A |
11. Piston | 90.3 | 199 | |
12. Piston Case with Retainer Ring | 200.5 | 442 | |
13. Piston Retainer Ring | 0.4 | 0.8 | |
14. O-Rings Driver Sub & Bit Ret. (2) | | | 23-99033 |
15. Guide Sleeve ) | 5.3 | 1.8 | In Seal Kit |
16. O-Ring Bit Retainer Ring | | | |
17. Bit Retainer Ring with O-Ring | 5.3 | 11.8 | In Seal Kit |
18. Break Out Ring, lower | 1.8 | 4 | 15-13001-02 |
19. Driver Sub | 63.1 | 117 | |
20. Bushing Insert | 5.3 | 11.8 | 17-13001-2 |
| | | | |
| | | |
Seal Kit | | | |
1 pieces of #4, 2 of #5, 2 of #14 & 3 of#16 | 0.5 | 1 | 38-1Bl56 |
| | | |
Complete hammer | | | 32-4512-SDA/39S |
| | | | |
| |
Bit shank |
DHD112 |
|
