Sandvik DTH DRILLING TOOLS
Click on the Part number to see part description  |

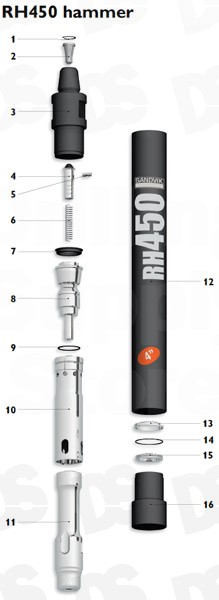

Replacement parts item description | Weight | Part № |
| kg | lb | |
1. Circlip
| 0.01 | 0.0 | |
2. Airscreen (with circlip)
| 0.05 | 0.1 | |
3. Top Sub
| | | |
2 3/8” API Reg. Pin
| 7.80 | 17.2 | |
2 7/8” API Reg. Pin
| 8.54 | 18.8 | |
4. Check Valve Dart (with spring)
| 0.25 | 0.6 | |
5. Choke Set
| 0.05 | 0.1 | |
6. Check Valve Spring
| 0.05 | 0.1 | |
7. ”V” Lock Ring
| 0.10 | 0.2 | |
8. Distributor (with O-Ring)
| 2.8 | 6.2 | |
9. O-Ring
| 0.02 | 0.0 | In Seal Kit |
10. Inner Cylinder
| 2.0 | 4.4 | |
11. Piston
| 7.9 | 17.4 | |
12. Piston Case
| 14.95 | 32.9 | |
13. Piston Retainer Ring
| 0.85 | 1.9 | |
14. O-Ring
| 0.02 | 0.0 | In Seal Kit |
15. Bit Retainer Ring (with O-ring)
| 0.20 | 0.4 | |
16. Driver Sub
| 3.45 | 7.6 | |
| | | |
Seal Kit | 0.05 | 0.1 | |
| | | |
| | | |
Rebuild Kit | | | |
With 2 3/8 API Reg. Pin
| 26.50 | 58.3 | |
With 2 7/8” API Reg. Pin
| 26.50 | 58.3 | |
| | | | |
| | | |
Complete hammer | | | |
With 2 3/8 API Reg. Pin
| 41.00 | 90.2 | 32-4540-SDA/16S |
With 2 7/8” API Reg. Pin
| 41.00 | 90.2 | 32-4540-SDA/11S |
| | | | |
| |
Bit shank DHD 340 |
|
|
Bit shank identifcation chart
| | Diameter | Air
holes | Gauge
buttons | Button dia. mm | Weight | Part No. | Shank |
mm | inch | gauge | front | Kg | lb |
DHD 340 |
| Concave face / Ballistic button | DHD 340 |
 | 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-361B115-R48 | |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-361B115-R55 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-361B127-R48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-361B127-R55 |
Concave face / Spherical button
|
 | 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-361B115-S48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-361B115-S65 |
| 121 | 4 3/4 | 2 | 8 | 14 | 14 | 11 | 24 | 42-361B121-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-361B127-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-361B127-S65 |
| 130 | 5 1/8 | 2 | 8 | 16 | 13 | 14 | 31 | 42-3618130-S48 |
| 133 | 5 1/4 | 2 | 8 | 16 | 13 | 15 | 33 | 42-3618133-S48 |
| Convex face / Ballistic button |
 | 110 | 4 3/8 | 2 | 8 | 14 | 14 | 8 | 18 | 42-365B110-R48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-365B115-R48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-365B115-R55 |
| 121 | 4 3/4 | 2 | 8 | 14 | 14 | 11 | 24 | 42-365B121-R48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-365B127-R48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-365B127-R55 |
| 130 | 5 1/8 | 3 | 9 | 16 | 14 | 14 | 31 | 42-36L9130-R48 |
| 133 | 5 1/4 | 3 | 9 | 16 | 14 | 15 | 33 | 42-36L9133-R48 |
| Flat face / Spherical button |
 | 110 | 4 3/8 | 2 | 8 | 14 | 14 | 8 | 18 | 42-36FB110-S48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-36FB115-S48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-36FB115-S65 |
| 121 | 4 3/4 | 2 | 8 | 14 | 14 | 11 | 24 | 42-36FB121-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-36FB127-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-36FB127-S65 |
| 130 | 5 1/8 | 2 | 8 | 16 | 14 | 14 | 31 | 42-36F9130-S48 |
| 133 | 5 1/4 | 2 | 8 | 16 | 14 | 15 | 33 | 42-36F9133-S48 |
Ballistic & Convex face / Ballistic and Spherical button
|
 | 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-365B115-L55 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-365B127-L55 |
| |
| Foot valve | 0,5 | 1 | | |
 |
| **Convex face with spherical gauge buttons and ballistic front buttons |
