Sandvik DTH DRILLING TOOLS
Click on the Part number to see part description  |

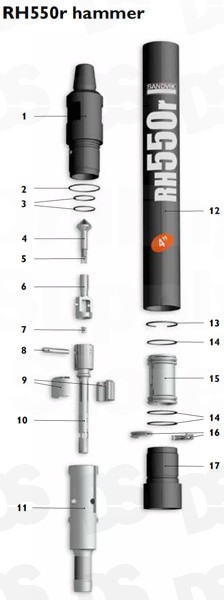

Replacement parts item description | Weight | Part № |
| kg | lb | |
1. Top Subs with 3 O-Rings
| | | |
2 3/8” API Reg. Pin | 10 | 22 | 33-48001-1/16A |
2 7/8” API Reg. Pin | 10 | 22 | 33-48001-1/11A |
#24 Cubex. pin | 10 | 22 | 33-48001-1/77A |
2. O-Ring Top Sub OD (1) | | | In seal kit |
3. O-Ring Top Sub ID (2) | | | In seal kit |
4. Check Valve Dart (with spring) | 0.3 | 0.66 | |
5. Check Valve Spring | 0.02 | 0.04 | |
6. Check Valve Guide | 0.2 | 0.44 | |
7. Choke Set, Blank 1/8”, 3/16”, & 1/4” | 0.1 | 0.22 | 29-48017A |
8. Feed Tube Retainer Pin | 0.03 | 0.07 | |
9. Tuning Ring for low volume (optional) | 0.23 | 0.51 | |
10. Feed Tube With Retainer Pin and Blank Choke | 0.7 | 1.54 | |
11. Piston | 7 | 15.40 | |
12. Piston Case with Retainer Ring | 15 | 33.00 | |
13. Piston Retainer Ring | 0.05 | 0.11 | |
14. O-Rings Guide Sleeve & Bit Ret. (3) | | | In seal kit |
15. Guide Sleeve with 2 O-Rings (Item 14) | 1.8 | 3.96 | |
16. Bit Retainer Ring w/O-Ring (Item 14) | 0.23 | 0.51 | |
17. Driver Sub | 3.2 | 7.04 | |
| | | |
Seal Kit | | | |
1 piece of 2, 2 of 3 & 7 of 14 | 0.25 | 0.5 | |
| | | |
Rebuild Kit | | | |
1 piece of 1, 1 of 12, 1of 17 & Seal Kit
| | | |
2 3/8” API Reg. Pin | 28 | 62 | 38-48001/16 |
2 7/8” API Reg. Pin | 28 | 62 | |
#24 Cubex. pin | 28 | 62 | 38-48001/77 |
| | | |
Complete hammer | | | |
2 3/8” API Reg. Pin top sub | | | 32-5540-RMA/16S |
2 7/8” API Reg. Pin top sub | | | 32-5540-RMA/11S |
#24 Cubex. pin top sub | | | 32-5540-RMA/77S |
| |
Bit shank |
M40 |
|
Bit shank identifcation chart
| | Diameter | Air
holes | Gauge
buttons | Button dia. mm | Weight | Part No. | Shank |
mm | inch | gauge | front | Kg | lb |
M40 |
| Concave face / Ballistic button | M40 |
 | 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-R48 | |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-R55 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-R48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-R55 |
| Concave face / Spherical button |
 | 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-S48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-S65 |
| 121 | 4 3/4 | 2 | 8 | 14 | 14 | 11 | 24 | 42-481B121-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-S65 |
| 130 | 5 1/8 | 2 | 8 | 16 | 13 | 14 | 31 | 42-4818130-S48 |
| 133 | 5 1/4 | 2 | 8 | 16 | 13 | 15 | 33 | 42-4818133-S48 |
| Convex face / Ballistic button |
 | 110 | 4 3/8 | 2 | 8 | 14 | 14 | 8 | 18 | 42-485B110-R48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-485B115-R48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-485B115-R55 |
| 121 | 4 3/4 | 2 | 8 | 14 | 14 | 11 | 24 | 42-485B121-R48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-485B127-R48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-485B127-R55 |
| 130 | 5 1/8 | 3 | 9 | 16 | 14 | 14 | 31 | 42-48L9130-R48 |
| 133 | 5 1/4 | 3 | 9 | 16 | 14 | 15 | 33 | 42-48L9133-R48 |
| Flat face / Spherical button |
 | 110 | 4 3/8 | 2 | 8 | 14 | 14 | 8 | 18 | 42-48FB110-S48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-48FB115-S48 |
| 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-48FB115-S65 |
| 121 | 4 3/4 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-48FB121-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-48FB127-S48 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-48FB127-S65 |
| 130 | 5 1/8 | 2 | 8 | 16 | 14 | 14 | 31 | 42-48F9130-S48 |
| 133 | 5 1/4 | 2 | 8 | 16 | 14 | 15 | 33 | 42-48F9133-S48 |
Concave face / Ballistic & Spherical buttons
|
 | 115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-485B115-L55 |
| 127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-485B127-L55 |
| |
