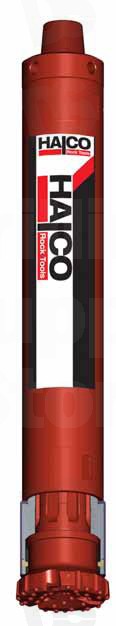

Halco RC5 Hammer Remet 4 1/2"

More Views

Halco RC5 Hammer Remet 4 1/2"
The RC5 has been designed to give maximum performance in Exploration and Grade Control applications. The new Halco® RC5 provides improved performance and a robust design. With no inner liner, the RC5 has a simple design that reduces complicated maintenance procedures providing less down time and greater savings. The Halco® RC5 is fitted with a reversible cylinder to prolong service life in abrasive conditions.
The Halco RC5 is equipped with a bit catcher to help retrieve shanked bits and collar the hole.
The RC5 also has a sub adaptor body to suit most dual wall drill pipe.
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 137 - 190 mm (5 3/8 - 7 1/2").
Description

Details

HAMMER OVERVIEW
Hammer Type
RC5
Part Number
600371
600372
  Shank
Halco RC5
  Top Thread
Remet 41/2"
Metzke 41/2"
  Weight
81.6 kg
  Outside Diameter
130mm ( 5.118" )
  Make Up Length
1285 mm (50.600")
PART LIST
Hammer Type
RC 5

Shank
Remet 4 1/2"
Metzke 4 1/2"
Add to quote
Model Number
600371
600372
1
 Thread Protector
741027
2
 Top-Adaptor
604222
604239
3
 O’Ring
768165
4
 Circlip
756015
5
 N.R.V. Seat & Filter
604223
6
 O Rings
768041
7
 O Rings
747121
-

8
 Upper Sample Tube
604262
604261
9
 Non Return Valve
604225
10
 U Seal
748098
11
 N.R.V. Spring
760115
12
 Distributor Cap
604291
13
 O Ring
768133
14
 Shim 4.5mm
604226
 Shim 5mm
604227
 Shim 5.5mm
604228
15
 Ringfeder Spring
760109
16
 O’Ring
768045
17
 O’Ring
768127
18
 Air Distributor
604236
19
 Retaining Ring
604313
20
 Sample Tube
604290
21
 Piston
604244
22
 Cylinder
604218
23
 Retaining Ring
604313
24
 Piston Guide Bush
604242
25
 Snap Ring
783009
26
 Bit Retaining Rings
604019
27
 O Ring
768091
28
 Bit Catcher
See Below

29
 Bit Catcher Key
603142
30
 Chuck *
604011
31
 End Cap
741053
SK
 Service Kit
SK62
SK63
RK
 Repair Kit
RK96
RK97

DRILL BITS
Bit
Diameter
Face
Button
Weight

Part No
mm
inch
Design
Type
(kg)

  Halco RC
Add to quote
653199
137
5 3/8
Concave
Domed
18.5
653200
140
5 1/2
Concave
Domed
18.7
653321
143
5 5/8
Concave
Domed
20.6
653201
146
5 3/4
Concave
Domed
18.9
653202
156
6 1/8
Concave
Domed
20.0
653203
159
6 1/4
Concave
Domed
21.0
653214
190
7 1/2
Concave
Domed
24.0
RC5 Bit Catcher

Part No
Outside Diameter
Add to quote

604030
133.00 / 133.25

604016
136.00 / 136.25

604356
139.00/139.25

604031
142.00 / 142.25

604032
152.00 / 152.25

604033
155.50 / 155.25

604102
185.00 / 185.25
