Sandvik DTH DRILLING TOOLS

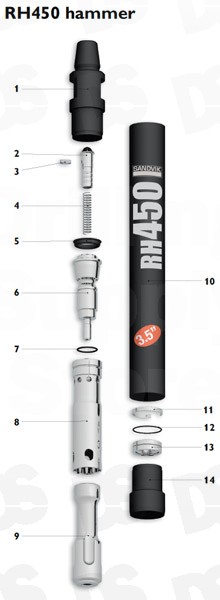

Click on the Part number to see part descriptionReplacement parts item descriptionWeightPart №kglb1. Top Sub 2 3/8” API Reg. Pin5.7012.52. Check Valve Dart (with spring)0.250.63. Choke Set0.050.14. Check Valve Spring0.050.15. ”V” Lock Ring0.100.26. Distributor (with O-Ring)1.954.37. O-Ring0.020.0In Seal Kit8. Inner Cylinder1.703.79. Piston4.449.810. Piston Case14.8532.711. Piston Retainer Ring0.100.212. O-Ring0.020.0In Seal Kit13. Bit Retainer Ring0.250.614. Driver Sub2.265.0Seal Kit0.050.1Rebuild Kit3 1/2” API reg. pin22.8150.2Complete HammerWith 2 3/8 API Reg. Pin3474.832-4535-SDA/16SBit shank DHD 3.5Bit shank identifcation chart
DiameterAir
holesGauge
buttonsButton dia. mmWeightPart No.ShankmminchgaugefrontKglbDHD 3.5Convex face / Ballistic button DHD 3.590 3 1/2 2 8 12 12 4,5 10 42-2451090-R48 95 3 3/4 2 8 12 12 4,5 10 42-2451095-R48 100 3 7/8 2 8 13 13 5,0 11 42-2454100-R48 105 4 1/8 2 8 14 14 5,2 11 42-245B105-R48 Flat face / Spherical button 90 3 1/2 2 8 11 11 4,5 10 42-24F0090-S48 95 3 3/4 2 8 12 12 4,7 10 42-24F1095-S48 100 3 7/8 2 8 13 13 5,0 11 42-24F4100-S48 105 4 1/8 2 8 14 14 5,2 11 42-24FB105-S48 Foot valve 0,5 1 - Reviews
-
