SAMPLING EQUIPMENT

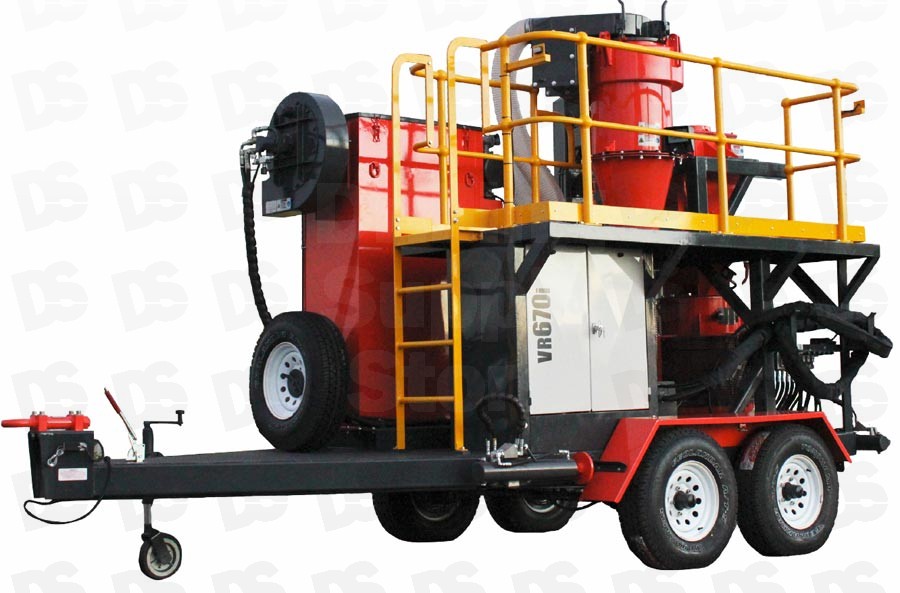

SANDVIK VR670i TRAILER MOUNTED SAMPLING EQUIPMENT

The VR670i trailer mounted sampling equipment is made up of components from Sandvik’s VR420 and ideal for reverse circulation drilling.

SPECIFICATION FOR VR670I - LOW VOLUME EQUIPMENT

RC involution cyclone 400-685 L/s (850-1450 cfm) with electric worm-drive

Actuator to open/close cyclone lid

Cyclone mounting bracket

Interval drop box with PLC and pneumatic control system

Qty:

| Add to Compare

Description

Details

Components

RC Involution cyclone

Interval drop box

• Involute scroll design minimize inlet wear.
• Non-stick liner reduces potential for hang-up.
• Replaceable ceramic lined quarter bend.
• VR420 400-685 L/s (850 to 1450 cfm).

• 2 centrally dumping, rubber lined hingeless doors.
• Non-stick liner reduces potential for sample hang-up.
• 60 L (16 USgal) holding capacity for up to 3m
(10ft) intervals.
• Self adjusting floating seal.
• PLC-pneumatic control box with a remote control at the work face.

RotaPort cone splitter	Emission filter
• Variable sample split. • Unrivaled duplicate sample repeatability. • Ergonomic sample collection. • Conical non-stick lined throat. • Flow assisting pneumatic vibrator. • Hydraulically rotating sampling cutters. • Full set of cutter blades from 4 - 10%.	• 60% reduction in compressed air consumption. • Reverse jet pulse-on-demand cleaning with venturi assist nozzles. • 40% smaller and lighter than other similar capacity collectors. • 4 x filter life expectancy of other collectors. • Twin dwarf hoppers with self-purging discharge socks. • VR420 400-945 L/s (850 to 2000 cfm).
