Details

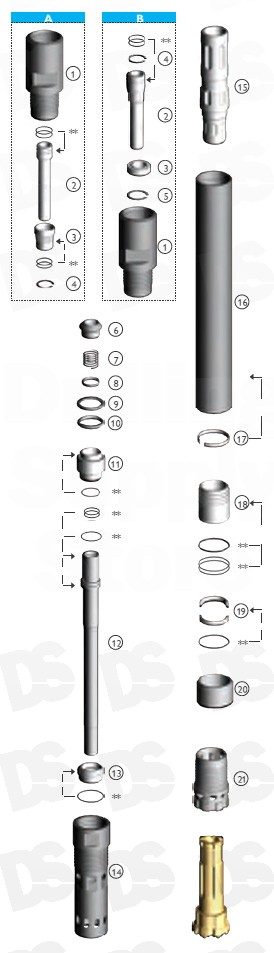

HAMMER TOP SUB ASSEMBLIES AND PARTS LIST
 | Ref | Part no | Description | |
A | 32-040-R35 | Hammer assy 3.5 inch Remet | |
1 | 33-040-R35 | Top sub 3.5 inch Remet | |
2 | 20-040-R35 | Adaptor tube 3.5 inch Remet | |
A | 32-040-R40 | Hammer assy 4 in Remet | |
1 | 33-040-R40 | Top sub 4 inch Remet | |
2 | 20-052-R40 | Adaptor tube 4 inch Remet | |
3 | 21-040-00B | Airscreen bottom load | |
4 | 41-D1400-0450 | Circlip | |
A | 32-040-M40 | Hammer assy 4 inch Metzke | |
1 | 33-040-M40 | Top sub 4 inch Remet | |
2 | 20-040-M40 | Adaptor tube 4 inch Metzke | |
3 | 21-040-00B | Airscreen bottom loads | |
4 | 41-D1400-0450 | Circlip | |
A | 32-040-MR40 | Hammer assy 4 inch Metzke/Remet | |
1 | 33-040-M40 | Top sub 4 inch Metzke | |
2 | 20-040-MR40 | Adaptor tube 4 inch Metzke | |
3 | 21-040-00B | Airscreen bottom load | |
4 | 41-D1400-0450 | Circlip | |
A | 32-040-M45 | Hammer assy 4.5 inch Metzke | |
1 | 33-040-M45 | Top sub 4.5 inch Metzke | |
2 | 20-040-M45 | Adaptor tube 4.5 inch Metzke | |
3 | 21-040-00B | Airscreen bottom load | |
4 | 41-D1400-0450 | Circlip | |
B | 32-040-R45 | Hammer assy 4.5 inch Remet | |
1 | 33-040-R45 | Top sub 4.5 inch Remet | |
2 | 20-040-R45 | Adaptor tube 4.5 inch Remet | |
3 | 21-040-00T | Airscreen top load | |
4 | 41-D1300-0850 | Circlip | |
5 | 41-D1400-0520 | Circlip | |
B | 32-040-D45 | Hammer assy 4.5 inch Drillstar | |
1 | 33-040-D45 | Top sub 4.5 inch Drillstar | |
2 | 20-040-DS45 | Adaptor tube 4.5 inch Drillstar | |
3 | 21-040-00T | Airscreen top load | |
4 | 41-D1300-0850 | Circlip | |
5 | 41-D1400-0520 | Circlip | |
Ref | Part no | Description |
6 | 25-052-000 | Plunger urethane | |
7 | 22-040-000 | Spring | |
8 | 39-040-000 | Spring seat (optional) | |
9 | 24-040-000 | Make up ring steel | |
10 | 28-040-000 | Viton make up ring | |
11 | 29-040-000 | Distributor | |
12 | 37-040-000 | Sample tube | |
12A | 37-040-00V | Sample tube venturi | |
13 | 30-040-000 | Mount sample tube | |
14 | 31-040-000 | Inner cylinder | |
15 | 36-040-000 | Piston | |
16 | 35-040-000 | Piston case | |
17 | 23-040-000 | Piston retaining ring | |
18 | 26-040-000 | Bush drive sub | |
19 | 27-040-000 | Bit retaining ring | |
20 | Shroud Hrdn | (Refer to the following chart)` | |
21 | 16-040-000 | Drive sub | |
| 38-040-001 | Rubber parts kit (for items 2, 6 , 11, 12 , 13, 18 ,19) ** sold separately | |
Bit Detalis
 | Bit Assortment |
Bit part no | Size (mm) | Size (inch) | Recommended Shroud | |
63-040-500DC | 127 | 5 | 40-[ ]-415 | |
63-040-500HF | 127 | 5 | 40-[ ]-415 | |
63-040-502DC | 130,2 | 5 1/8 | 40-[ ]-501 | |
63-040-502HF | 130,2 | 5 1/8 | 40-[ ]-501 | |
63-040-504DC | 133,4 | 5 1/4 | 40-[ ]-503 | |
63-040-504HF | 133,4 | 5 1/4 | 40-[ ]-503 | |
63-040-506DC | 136,5 | 5 3/8 | 40-[ ]-505 | |
63-040-506HF | 136,5 | 5 3/8 | 40-[ ]-505 | |
63-040-508DC | 139,7 | 5 1/2 | 40-[ ]-507 | |
63-040-508HF | 139,7 | 5 1/2 | 40-[ ]-507 | |
63-040-608 | 165,1 | 6 1/2 | 40-[ ]-607 | |
63-040-708 | 190,5 | 7 1/2 | 40-[ ]-707 | |
63-040-800 | 203,2 | 8 | 40-[ ]-714 | |
Bit assemblies include a hardened shroud (non-coated) 1,6 mm 91/16 in) smaller than the bit diameter
 | Hardened sprayed shroud assortment |
Hardened shroud | Size (mm) | Size (inch) | |
40-040-413 | 122,2 | 4 13/16 | |
40-040-414 | 123,8 | 4 7/8 | |
40-040-415 | 125,4 | 4 15/16 | |
40-040-500 | 127 | 5 | |
40-040-501 | 128,6 | 5 1/16 | |
40-040-502 | 130,2 | 5 1/8 | |
40-040-503 | 131,7 | 5 3/16 | |
40-040-504 | 133,4 | 5 1/4 | |
40-040-505 | 134,9 | 5 5/16 | |
40-040-506 | 136,5 | 5 3/8 | |
40-040-507 | 138,1 | 5 7/16 | |
40-040-607 | 163,5 | 6 7/16 | |
40-040-707 | 188,5 | 7 7/16 | |
40-040-714 | 200 | 7 7/8 | |
Metal sprayed shrouds are sold separately as an option
