Sandvik RC Hammer Remet RE531

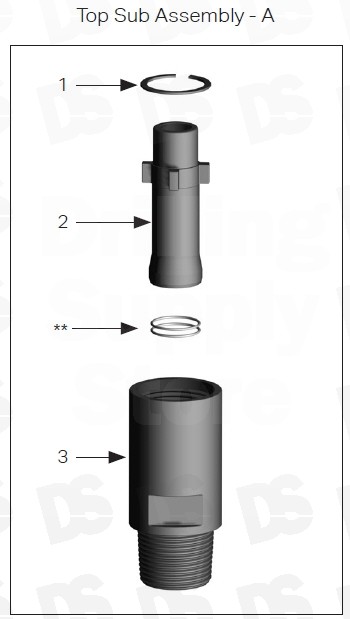

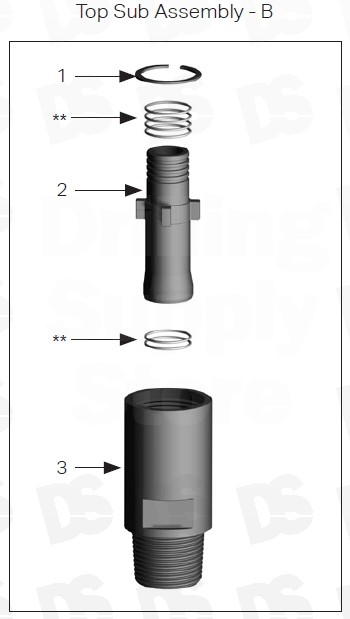

HAMMER COMPONENTS

Ref	Product Name	Part Number
1	Sample tube RE120	37-120-000
2	Circlip RE120	41-D1300-0850
3	Airscreen RE120	21-120-000
4	Distributor RE120	29-120-000
5	Plunger RE120	25-120-000
6	Spring RE120	22-120-000
7	Inner cylinder RE120	31-120-000
8	Piston (Standard) RE120	36-120-000
8A	Piston (High back pressure) RE120	36-120-HBP
9	Piston case RE120	35-120-000
10	Piston retaining ring RE120	23-120-000
11	Drive sub bush RE120	26-120-000
12	Bit retaining ring RE120	27-120-000
13	Drive sub RE120	16-120-000

BITS And SHROUDS

Product Name	Part Number	Qty
RC Bit 127mm 5in for Hammer RE120	62-120-500HF
Shroud 125mm 4-15/16in for Bit 127mm 5in	40-120-415
RC Bit 130mm 5 1/8in for Hammer RE120	62-120-502HF
Shroud 128mm 5-1/16in for Bit 130mm 5 1/8in	40-120-501
RC Bit 133mm 5 1/4in for Hammer RE120	62-120-504DC
RC Bit 133mm 5 1/4in for Hammer RE120	62-120-504HF
Shroud 132mm 5-3/16in for Bit 133mm 5 1/4in	40-120-503
RC Bit 137mm 5 3/8in for Hammer RE120	62-120-506DC
RC Bit 137mm 5 3/8in for Hammer RE120	62-120-506HF
Shroud 135mm 5-5/16in for Bit 137mm 5 3/8in	40-120-505
RC Bit 140mm 5 1/2in for Hammer RE120	62-120-508HF
Shroud 138mm 5-7/16in for Bit 140mm 5 1/2in	40-120-507
RC Bit 191mm 7 1/2in for Hammer RE120	62-120-708
Shroud 189mm 7-7/16in for Bit 191mm 7 1/2in	40-120-707
RC Retention Bit 127mm 5in for Hammer RE120	62-120R-500HF
Shroud 125mm 4-15/16in for Retention Bit 127mm 5in	40-120R-415
RC Retention Bit 130mm 5 1/8in for Hammer RE120	62-120R-502HF
Shroud 128mm 5-1/16in for Retention Bit 130mm 5 1/8in	40-120R-501
RC Retention Bit 133mm 5 1/4in for Hammer RE120	62-120R-504HF
Shroud 132mm 5-3/16in for Retention Bit 133mm 5 1/4in	40-120R-503
RC Retention Bit 137mm 5 3/8in for Hammer RE120	62-120R-506HF
Shroud 135mm 5-5/16in for Retention Bit 137mm 5 3/8in	40-120R-505
RC Retention Bit 140mm 5 1/2in for Hammer RE120	62-120R-508HF
Shroud 138mm 5-7/16in for Retention Bit 140mm 5 1/2in	40-120R-507

ASSEMBLY CHART

Details

*** Bits used for collaring only

RETENTION BIT/SHROUD SELECTION TABLE
Bit	Bit Ø	Shroud	Shroud Ø
62-120R-500HF	127mm 5”	40-120R-415	125mm 4-15/16”
62-120R-502HF	130mm 5-1/8”	40-120R-501	128mm 4-1/16”
62-120R-504HF	133mm 5-1/4”	40-120R-503	132mm 5-3/16”
62-120R-506HF	137mm 5-3/8”	40-120R-505	135mm 5-5/16”
62-120R-508HF	140mm 5-1/2”	40-120R-507	138mm 5-7/16”

HAMMER ASSEMBLIES
Item	Part No	Description
1-13	32-120-000	Hammer Assy -standard
1-13	32-120-HBP	Hammer Assy -high back pressure
