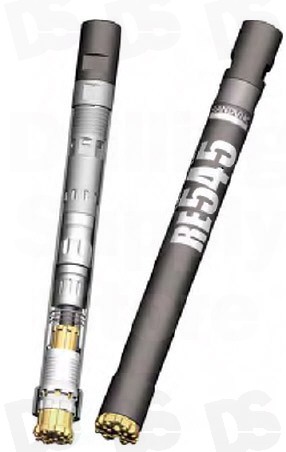

Sandvik Hammer RE545

More Views

Product Name	Qty	Part Number
Hammer Assy 4.5in Remet RE545		32-545-R45
Hammer Assy 4in Metzke/Remet RE545		32-545-MR40
Hammer Assy 4in Remet RE545		32-545-R40
Hammer Assy 4.5in Metzke RE545		32-545-M45
Hammer Assy 4in Metzke RE545		32-545-M40

Description

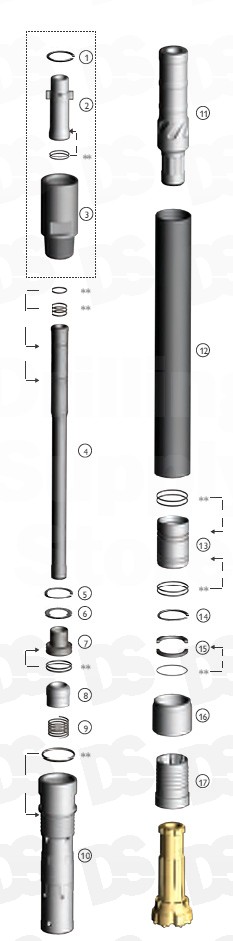

HAMMER TOP SUB ASSEMBLIES AND PARTS LIST

REF	PART NO	DESCRIPTION
A	32-545-M40	Hammer assy 4 inch Metzke
1	41-D1300-0800	Circlip
2	20-545-M40	Adaptor tube 4 inch Metzke
3	33-545-M40	Top sub 4 inch Metzke
A	32-545-MR40	Hammer assy 4 inch Metzke/Remet
1	41-D1300-0800	Circlip
2	20-545-MR40	Adaptor tube 4 inch M/R
3	33-545-M40	Top sub 4 inch Metzke
B	32-545-R40	Hammer assy 4 inch Remet
1	41-D1300-0900	Circlip
2	20-545-R40	Adaptor tube 4 inch Remet
3	33-545-R40	Top sub 4 inch Remet
B	32-545-M45	Hammer assy 4.5 inch Metzke
1	41-D1300-0850	Circlip
2	20-545-M45	Adaptor tube 4.5 inch Metzke
3	33-545-M45	Top sub 4.5 inch Metzke
B	32-545-R45	Hammer assy 4.5 inch Remet
1	41-D1300-0900	Circlip
2	20-545-R45	Adaptor tube 4.5 inch Remet
3	33-545-R45	Top sub 4.5 inch Remet
REF	PART NO	DESCRIPTION
4	37-545-000	Sample tube
4A	37-545-00V	Sample tube venturi
5	41-D1300-0850	Circlip
6	21-545-000	Airscreen
7	29-545-000	Distributor nozzle
8	25-545-000	Plunger
9	22-545-000	Spring
10	31-545-000	Inner cylinder
11	36-545-000	Piston
12	35-545-000	Piston case
13	26-545-000	Bush drive sub
14	23-542-000	Piston retaining ring
15	27-545-000	Bit retaining ring
16	Shroud Hrdn	(Refer to the following chart)
17	16-545-000	Drive sub
	38-545-000	Rubber parts kit (for items 2, 4, 7, 8, 13,15) ** sold separately

Bit Detalis

Bit assemblies include a hardened shroud (non-coated) 1,6 mm 91/16 in) smaller than the bit diameter

Hardened Sprayed SHROUD ASSORTMENT
Hardened shroud	Size (mm)	Size (inch)
40-545-413	122,2	4 13/16
40-545-414	123,8	4 7/8
40-545-415	125,4	4 15/16
40-545-500	127	5
40-545-501	128,6	5 1/16
40-545-502	130,2	5 1/8
40-545-503	131,7	5 3/16
40-545-504	133,4	5 1/4
40-545-505	134,9	5 5/16
40-545-506	136,5	5 3/8
40-545-507	138,1	5 7/16
40-545-508	139,7	5 1/2
40-545-607	163,5	6 7/16
40-545-611	170	6 11/16
40-545-707	188,5	7 7/16
