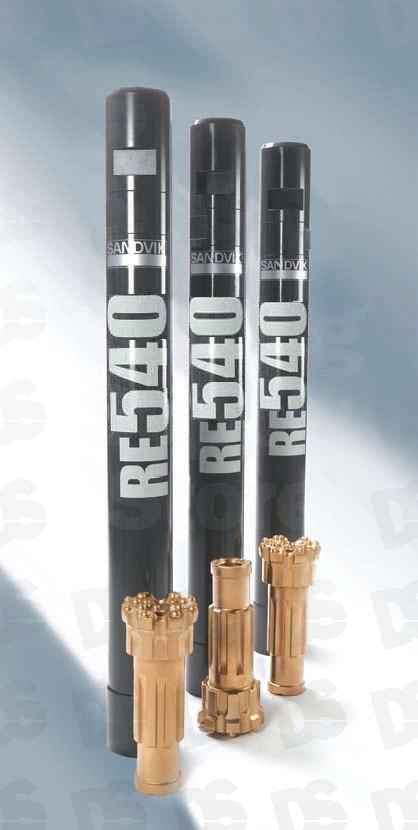

Sandvik RC Hammer 3.5"(inch) Remet RE540

Description

Details

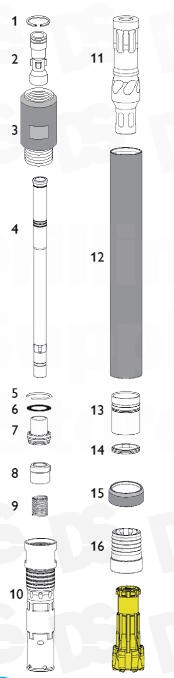

REF	PART No	PART DESCRIPTION
1	41-D1300-0700	Circlip
2	20-540-R35	Adaptor Tube 3.5in Remet
3	33-540-R35	Top Sub 3.5in Remet
1	41-D1300-0800	Circlip
2	20-540-R40	Adaptor Tube 4in Remet
3	33-540-R40	Top Sub 4in Remet
1	41-D1300-0800	Circlip
2	20-540-M40	Adaptor Tube 4in Metzke
3	33-540-M40	Top Sub 4in Metzke
1	41-D1300-0800	Circlip
2	20-540-MR40	Adaptor Tube 4in M/R
3	33-540-M40	Top Sub 4in Metzke
4	37-540-000	Sample Tube
5	41-D1300-0800	Circlip
6	21-540-000	Airscreen
7	29-540-000	Distributor Nozzle
8	25-540-000	Plunger
9	22-540-000	Spring
10	31-540-000	Inner Cylinder
11	36-540-000	Piston
12	35-540-000	Piston Case
13	26-540-000	Bush Drive Sub
14	27-540-000	Bit Retaining Ring
15	40-540-407	Shroud Hrdn 4-7/16in 113mm
16	16-540-000	Drive Sub
	38-540-000	Rubber Parts Kit (For Items 2,4,7,15) *Rubber parts kit sold separately *
