Details

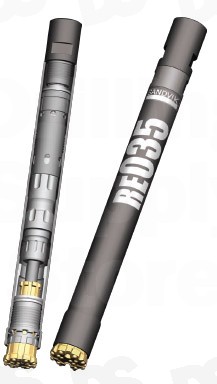

HAMMER TOP SUB ASSEMBLIES AND PARTS LIST
 | Ref | Part no | Description | |
| 32-035-R30 | Hammer Assy 3 inch Remet | |
1 | 41-D1300-0600 | Circlip | |
2 | 20-035-R30 | Adaptor tube 3 inch Remet | |
3 | 33-035-R30 | Top sub 3 inch Remet | |
4 | 25-035-000 | Plunger | |
5 | 22-035-000 | Spring | |
6 | 37-035-00U | Sample tube upper | |
7 | 24-035-000 | Make up ring steel | |
8 | 37-035-00L | Sample tube lower | |
9 | 29-035-000 | Distributor | |
10 | 31-035-000 | Inner cylinder | |
11 | 36-035-000 | Piston | |
12 | 35-035-000 | Piston case with bush | |
13 | 27-035-000 | Bit retaining ring | |
14 | Shroud Hrdn | (Refer to the following chart) | |
15 | 16-035-000 | Drive sub | |
| 38-035-000 | Rubber parts kit (for items 2,4,8,9,13) ** sold separately | |
| | | | |
BIT DETALIS
 | Bit Assortment |
Bit part no | Size (mm) | Size (inch) | Recommended Shroud | |
63-035-306DC | 85,7 | 3 3/8 | 40-[ ]-305 | |
63-035-308HF | 88,9 | 3 1/2 | 40-[ ]-307 | |
63-035-400DC | 101,6 | 4 | 40-[ ]-400 | |
Bit assemblies include a hardened shroud (non-coated) 1,6 mm 91/16 in) smaller than the bit diameter
 | Hardened sprayed shroud assortment |
Hardened shroud | Size (mm) | Size (inch) | |
40-035-305 | 84,1 | 3 5/16 | |
40-035-306 | 85,7 | 3 3/8 | |
40-035-307 | 87,3 | 3 7/16 | |
40-035-308 | 88,9 | 3 1/2 | |
40-035-309 | 90,5 | 3 9/16 | |
40-035-310 | 92,1 | 3 5/8 | |
40-035-311 | 93,7 | 3 11/16 | |
40-035-315 | 100 | 3 15/16 | |
Metal sprayed shrouds are sold separately as an option
