Sandvik RC Hammer RE531

Sandvik RC Hammer RE531

Sandvik RC Hammer RE531

More Views

Sandvik RC Hammer RE531

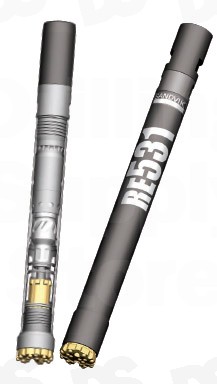

RCDHH - RE531 REVERSE CIRCULATION DOWN-HOLE HAMMER is ideal for medium to hard ground, a good alternative to air core drilling.

SPECIFICATIONS
	Ø mm	Ø in
Hammer	81	3-1/4
Bit	86 to 102	3-3/8 to 4

HAMMER ASSEMBLIES
Item	Part No	Description
1-15	32-531-R30	Hammer Assy 3in Remet

Technical Specification

Qty:

OR

| Add to Compare

HAMMER COMPONENTS

Ref	Product Name	Part Number	Qty
1	Circlip	41-D1300-0570-RE531
2	Adaptor Tube	20-531-R30
3	Top Sub	33-531-R30
4	Sample tube - Venturi	37-531-00V
5	Circlip	41-D1300-0680-RE531
6	Distributor Nozzle	29-531-000
7	Plunger	25-531-000
8	Spring	22-531-000
9	Inner Cylinder	31-531-000
10	Piston	36-531-000
11	Piston Case	35-531-000
12	Bush Drive Sub	26-531-000
13	Bit Retaining Ring	27-531-000
15	Drive Sub	16-531-000
**	Rubber Parts Kit	38-531-000

BITS And SHROUDS

Product Name	Part Number	Qty
Sandvik RC Bit for Hammers 3"(inch)Remet RE531 (3-3/8in 86.0mm)	62-531-306CF
Sandvik Hardened Shroud for Hammers 3"(inch)Remet RE531 (3-5/16in (84.1 mm)	40-531-305
Sandvik RC Bit for Hammers 3"(inch)Remet RE531 (3-1/2in 89mm)	62-531-308CF
Sandvik Hardened Shroud for Hammers 3"(inch)Remet RE531 (3-7/16in (87.3mm)	40-531 -307
Sandvik RC Bit for Hammers 3"(inch)Remet RE531 (3-3/4in 95mm)	62-531-312CF
Sandvik Hardened Shroud for Hammers 3"(inch)Remet RE531 (3-11/16in (93.7mm)	40-531-311
Sandvik RC Bit for Hammers 3"(inch)Remet RE531 (4 in 102mm)	62-531-400CF
Sandvik Hardened Shroud for Hammers 3"(inch)Remet RE531 (3-15/16in (100mm)	40-531-315

ASSEMBLY CHART

Details

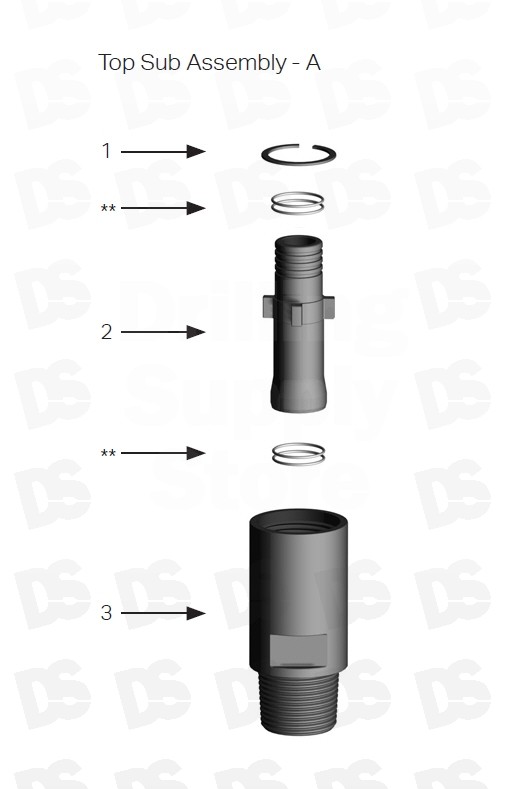

TOP SUB ASSEMBLIES
Item	Part No	Description
A		3in Remet
1	41-D1300-0570	Circlip
2	20-531-R30	Adaptor Tube 3in Remet
3	33-531-R30	Top Sub 3in Remet

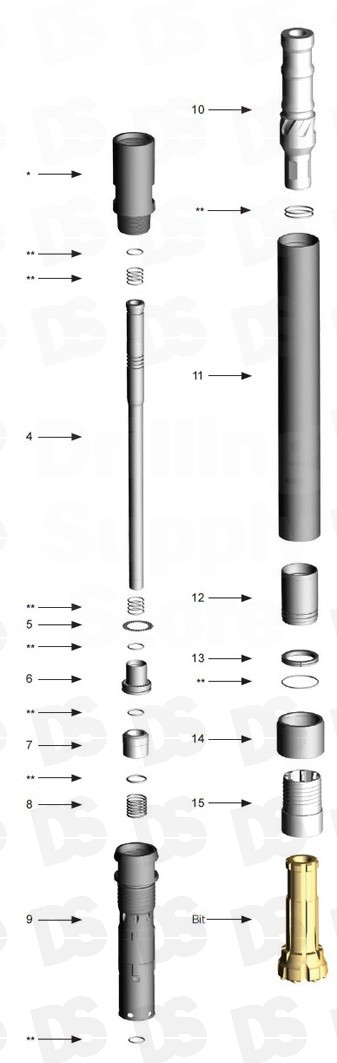

Ref	Part no	Description
*	-	Top sub assembly
4	37-531-00V	Sample tube - Venturi
5	41-D1300-0680	Circlip
6	29-531-000	Distributor nozzle
7	25-531-000	Plunger
8	22-531-000	Spring
9	31-531-000	Inner cylinder
10	36-531-000	Piston
11	35-531-000	Piston case
12	26-531-000	Drive sub bush
13	27-531-000	Bit retaining ring
14	40-531-3**	Shroud - refer to selection table
15	16-531-000	Drive sub
	38-531-000	Rubber parts kit (Sold separately)

Bit	Bit Diameter	Shroud	Shroud Diameter
62-531-306CF	86mm 3-3/8”	40-531-305	84mm 3-5/16”
62-531-308CF	89mm 3-1/2”	40-531-307	87mm 3-7/16”
62-531-312CF	95mm 3-3/4”	40-531-311	93mm 3-11/16”
62-531-400CF	102mm 4”	40-531-315	100mm 3-15/16”
