CASING ADVANCE SYSTEM
- The Most Efficient Way of Carrying Casing Down- The-Hole
- Made of Premium U.S. Steel for Strength & Durability
- Innovative, Simple, Yet Proven Design
- Available for Most Hammer Shanks
- Superior Technology for Outstanding Performance

* Required Fields

Description

Details

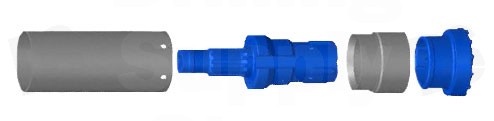

The newest generation of Casing Advance Systems means increased productivity, longer life, and straighter holes. Pilot Bit, Ring Bit & Casing Shoe assembly customizable to driller’s specifications

CASING DIA (in) DIA(mm) WEIGHTS (LBS/KG)
SIZE (in) OD ID OD ID PILOT BIT RING BIT ASSEMBLY HAMMER SHANKS
4" 4.5 4.03 114.21 102.28 22/10 8.6/3.9 IR3.5, COP34, COP32
5" 5.56 5.05 141.12 128.17 35/16 12.8/5.8 QL4, IR340, SD4
6" 6.63 6.07 168.27 154.06 59.5/27 16.5/7.5 QL5, IR350R, SD5
8" 8.63 7.98 219.04 202.54 118/53.5 27/12.3 QL6, IR360, SD6
10" 10.75 10.02 272.84 254.31 214/97 30/13.6 QL8, IR380, SD8
12" 12.75 11.94 323.60 303.05 275/125 48.5/22 QL8, IR380, SD8, SD10, N100
14" 14 13.13 355.33 333.25 485/220 57/26 SD10, N100, QL120, IR112, SD12, N120, N125
16" 16 15 406.09 380.71 573/260 57/26 QL120, IR112, SD12, N120, N125
18" 18 16.88 456.85 428.43 670/304 82/37 QL120, IR112, SD12, N120, N125
20" 20 18.81 507.61 477.41 Variable weights depending on shank QL120, IR112, SD12, N120, N125, SD15, IR112S, N180, SD18, QL200
24" 24 22.63 609.14 574.37 SD18, N180, QL200

*CUSTOMIZABLE TO DRILLER'S SPECIFICATIONS
