RECOMMENDED SPARE PARTS LIST |
Part No | Description | Qty |
02250051-238 | Replacement for air filter element-primary | 2 |
02250051-239 | Replacement for air filter element-secondary (safety) | 2 |
250031-850 | Replacement for compressor oil filter | 1 |
02250175-907 | Replacement for engine (CAT) oil filter - 1R1808 | 1 |
02250175-908 | Replacement for engine (CAT) fuel filter - primary1R0771 | 1 |
02250154-065 | Replacement for engine (CAT) fuel filter - secondary1R0749 | 1 |
KITS |
250028-244 | Replacement kit for receiver tank separator element | 1 |
02250051-629 | Replacement for started solenoid | 1 |
02250112-531 | Repair kit for inlet valve (springs included) | 1 |
02250056-278 | Repair kit for inlet valve(springs not included) | 1 |
02250166-773 | Repair kit for recirculation solenoid - air control manifold | 1 |
02250166-774 | Repair kit for start/run solenoid - air control manifold | 1 |
02250166-770 | Master repair kit for air control manifold (XH and XHH machines) | 1 |
02250166-775 | Repair kit for hi/lo solenoid - air control manifold | 1 |
02250166-777 | Replacement for air control manifold solenoid (coil only) | 3 |
02250077-469 | Repair kit for blowdown valve 02250069-820 | 1 |
02250163-466 | Repair kit for pressure differential valve 02250115-269 | 1 |
02250166-779 | Repair kit for control pressure reducing regulator | 1 |
02250166-782 | Repair kit for internal check valve - air control manifold | 1 |
02250166-784 | Repair kit for back pressure regulator | 2 |
02250166-921 | Repair kit for spiral valve solenoid | 1 |
02250111-622 | Repair kit for compressor oil thermostat | 1 |
02250051-747 | Rebuild kit for compressor oil stop valve | 1 |
Consult factory | Discharge check valve kit | |
02250166-761 | Minimum pressure valve kit | |
MISCELLANEOUS |
02250069-601 | Replacement for engine/compressor drive coupling | 1 |
02250141-305 | Replacement for compressor intake filter restriction switch | 1 |
02250143-881 | Replacement for engine intake filter restriction switch | 1 |
02250163-929 | Replacement for compressor interstage temperature (IT) switch | 1 |
02250159-105 | Replacement for receiver tank temperature (RTT) switch | 1 |
02250159-205 | Replacement for Compass Controller | 1 |
02250159-425 | Replacement for Compass Controller enclosuer access key | 1 |
02250160-837 | Replacement for battery disconnect switch | 1 |
02250161-276 | Replacement for ambient temperature sensor | 1 |
02250161-277 | Replacement for compressor discharge temperature sensor | 1 |
02250144-311 | Replacement for 0-750 psi transducer | 3 |
LUBRICATION |
250030-758 | Replacement for compressor lubricant - AWF (55 gallons/208 liters) | 3 |
250030-757 | Replacement for compressor lubricant - AWF (5 gallons/18.9 liters) | 1 |
| |

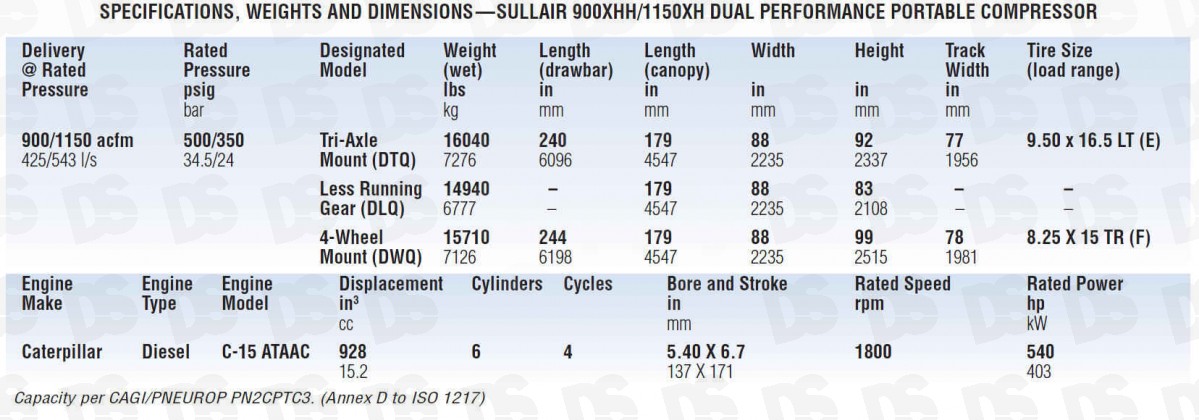

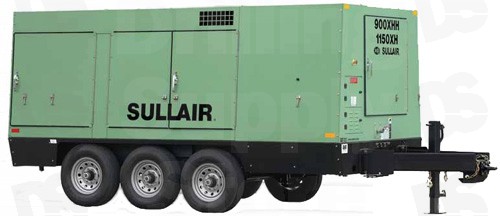

Sullair rotary screw air compressor, model 900XHH/1150XH air cooled. The unit has a capacity of 900 CFM at 500 PSIG or 1150 CFM at 350 PSIG. The compressor is powered by a diesel engine. Instruments and controls included are: |
Electronic Engine Control
| |
Electronic controls include a diagnostic capability and an onboard computer that can record historical events when engine is running. Small readout screen on the instrument panel where the diagnostic information can be obtained. |
Two-Stage Dry Type Air filters with Safety Element.
|
Positioned to draw cool outside air. |
Curbside Instrument Panel
| |
Hinged, lockable cover. Mechanical gauges are used for air pressure, compressor discharge temperature, air filter maintenance indicators, and separator maintenance indicator. Engine Monitor System will display: engine hours, engine RPM, voltage, coolant temperature, engine oil pressure, percent load, fuel rate and more. Other instrumentation include, measured shot ether start aid, fuel level gauge, circuit breakers, and engine warning and fault code lights. High/Low pressure selector valve allows dual pressure capability without making mechanical adjustment.
|
Diagnostic shutdown Indicator System.
| |
For compressor: High discharge temperature. For engine: Low fuel level. For additional diagnostics, by using a Caterpillar service tool that can retrieve recorded engine parameters (power, engine temperature…), the service technician can determine what the engine was doing before, during and after system malfunction. |
Protective Shutdown Switches
| |
Low engine oil pressure, high engine water temperature, low water level, high compressor temperature or low fuel level. A protective circuit also prevents starter engagement when machine is operating. |
AWF Compressor Fluid
| |
All-weather, all-climate fluid. |
Air End Warranty
| |
2 year standard warranty 5 year or 10,000 hour warranty when continuously serviced at the recommended intervals with ‘Sullair AWF Compressor Fluid and filters. |
Quiet Operation
| |
Meets US EPA Sound requirements of 76dBA @ 7 meters. Unit comes equipped with block heater for cold weather operation. Motor: • Manufacturer: - Caterpillar • Model - C-15 ATAAC • Type: - Diesel • # of cylinders - 6 • H.P.: - 525 |
