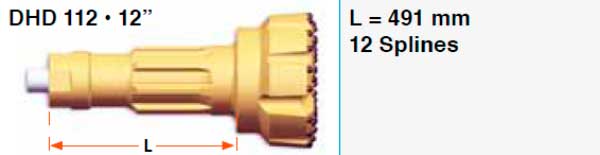

DHD 112

42-69D9140-S48

Bit shank identifcation chart


Sandvik RH550
Diameter
Air
holes
Gauge
buttons
Button dia. mm
Weight
Part No.

Shank
mm
inch
gauge
front
Kg
lb
DHD 112

Convex face / Spherical button
DHD 112
302 11 7/8 3 12 18 18 171,0 376 42-918E302-S48F
311 12 1/4 3 12 18 18 172,0 378 42-918E311-S48F
330 13 3 12 18 18 181,0 398 42-918E330-S48F
357 14 3 18 18 18 191,0 420 42-91PE357-S48F
381 15 3 18 18 18 200,0 440 42-91PE381-S48F
444 17 1/2 3 18 18 18 225,0 495 42-91PE444-S48F
483 19 3 18 18 18 280,0 616 42-91PE483-S48F
508 20 3 18 18 18 306,0 673 42-91PE508-S48F

Foot valve 0,5 1.2
47-91017-1

**Convex face with spherical gauge buttons and ballistic front buttons


AVAILABLE SHANKS
  M 30
  M 60
  QL 60
  SD 6
  SD 12
  M 40
  M 80
  QL 80
  SD 8
  SD 15
  M 50
  QL 50
  SD 5
  SD 10
  SD 18
