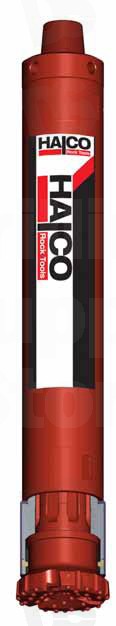

Dominator 10

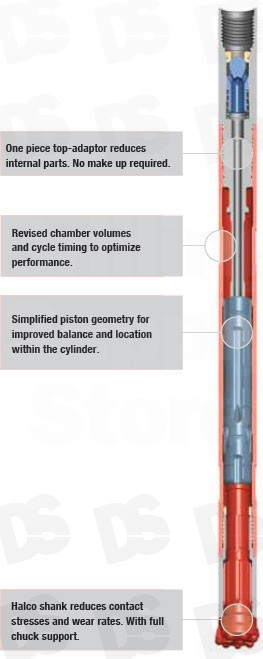

The Dominator 10 is designed for small diameter drilling operations and its superior drilling performance makes it at least 50% faster than its nearest competitor.The valveless design of the Dominator 10 provides high performance at both low and high pressures. The Dominator 10 has a strong robust design withstands heavy duty applications. A N.R.V. (Non-Return-Valve) is fitted into the Dominator 10 to prevent flooding where ground water is present.
Suitable for operation at air pressures of 100 - 250 psi (7 - 17 bar).
Drilling diameters of 55 - 64 mm (2 1/8 - 2 1/2").
Available Shanks: Halco Dominator 1
Description

Details

HAMMER OVERVIEW
Hammer Type
Dominator 10
Part Number
600422
  Shank
Halco 1
  Top Thread
40 mm DIN 405 6 TPI BOX
  Hammer Flat Size
38 mm (1.500")
  Weight
7 kg (15.4 lbs)
  Outside Diameter
47 mm (1 7/8")
  Make Up Length
772 mm (30 3/8")
  Recommended Maximum Thrust
120 kg (264 lbs)

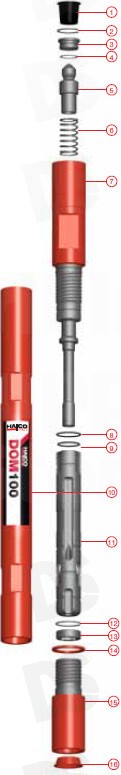

PART LIST
Hammer Type
Dominator 10
Shank
Halco 1
Model Number
600422
Item
Part Number
Description
1
200005
  Thread Protector

2
783041
  Snap Ring

3
603448
  N.R.V. Seat

4
768174
  O'Ring

5
603447
  Non Return Valve

6
760100
  N.R.V. Spring

7
603413
  Top-Adaptor

8
768168
  O'Ring

9
768175
  O'Ring

10
603410
  Cylinder

11
603450
  Piston

12
783037
  Snap Ring

13
603449
  Bit Retaining Ring

14
603412
  Chuck Spacer

15
603411
  Chuck

16
741047
 Protective Cap

SK
SK31
  Service Kit

RK
RK54
  Repair Kit

603208
  Foot Valve

603233
  F/v Tool - Body

603232
  F/v Tool - Pusher

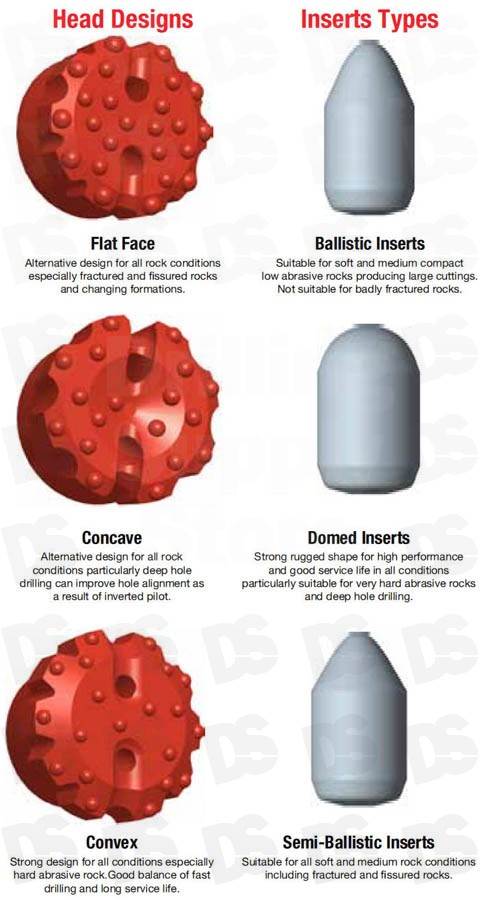

DRILL BITS
Bit
Diameter
Face
Buttons
Weight
Part No
mm
inch
Design
Type
Qty/Dia
(kg)
Halco Dominator 100 Shank
650017
55
2 1/6
Flat
Domed
6 x11 mm / 2 x 9 mm
1.16
650032
64
2 1/2
Flat
Domed
6 x11 mm / 3 x 9 mm
1.37
