Halco Mach 120

More Views

Halco Mach 120

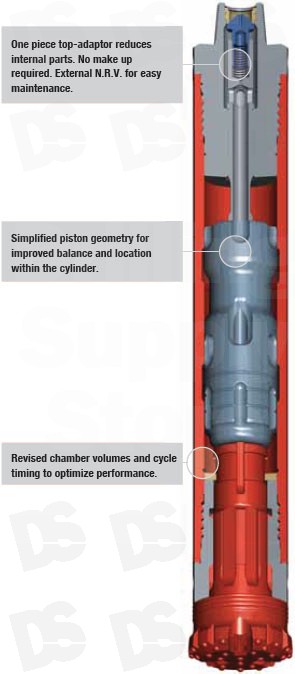

The Mach 120 accepts A100-15 (SD12) shank bits and its optimum performance is reached at air pressures of 200 psi (14 bar) and above. The Mach 120 has a one piece top-adaptor with N.R.V. (Non-Return-Valve) fitted for easy inspection and service, with integral finger to reduce maintenance and eliminate shimming which increases service intervals. Mach 120 has no liner which increases the 140 kg piston's blow energy and reduces parts required. This hammer is suitable for use with overburden systems.

Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 300 - 445 mm (11 7/8 - 17 1/2").
Available Shanks: Sandvik Mission A100-15/SD12.

Description

Details

HAMMER OVERVIEW
Hammer Type
Mach 120
Part Number
600108
  Shank
Sandvik Mission A100-15 / SD12
  Top Thread
6 5/8" Api Reg Pin
  Flat Hammer Size
N/A
  Weight
614 kg
  Outside Diameter
273 mm (10.748")
  Make Up Length
1667 mm (65.629")
  Recommended Minimum Thrust
1600 kg (3520 lbs)
  Recommended Maximum Thrust
3500 kg (7700 lbs)

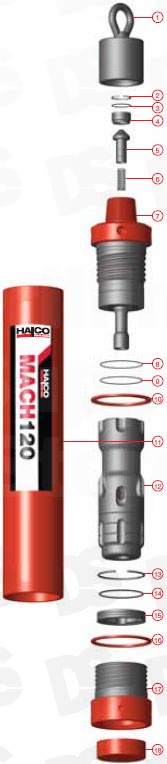

PARTS LIST
Hammer Type
Mach120

Shank
A100-15/SD12

Model Number
600108

Item
Part Number
Description

1
602354
  Lifting Cap

2
777001
  Circlip

3
768133
  O'Ring

4
602286
  N.R.V. Seat

5
602288
  Non Return Valve

6
760055
  N.R.V. Spring

7
602639
  Top-Adaptor

8
768137
  O'Ring

9
768137
  O'Ring

10
602366
  Top-Adaptor Spacer

11
602013
  Cylinder

12
602047
  Piston

13
783021
  Snap Ring

14
768105
  Containment Band

15
602102
  Bit Retaining Ring

16
602366
  Chuck Spacer

17
602052
  Chuck

18
741035
  End Cap

SK
SK12
  Service Kit

RK
RK19
  Repair Kit

601811
  Foot Valve

601812
  F/V Tool - Body

601813
  F/V Tool - Pusher



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/Dia
Size
(kg)
Halco/ Sandvik Mission A100-15/SD12 Shank
650874
300
11 7/8
Convex
Domed
29 x 20 mm

138

650383
311
12 1/4
Concave
Domed
31 x 20 mm

133.5

650988
381
15
Concave
Domed
65 x 20 mm D / 18 x 16 mm W

208

653138
406
16
Concave
Domed
74 x 20 mm D / 18 x 16 mm W

210

650376
445
17 1/2
Concave
Domed
79 x 20 mm
Y
245
