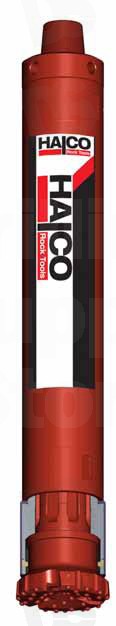

The Mach 132 hammer accepts IR DHD112 shank bits. This hammer, although capable of high pressure drilling is particularly suitable at pressures between 100-200 psi (7 - 14 bar). The Mach 132 has a pin drive system to prevent metal to metal contact thereby minimizing
spline wear and damage which can result in drill bit shank failure.

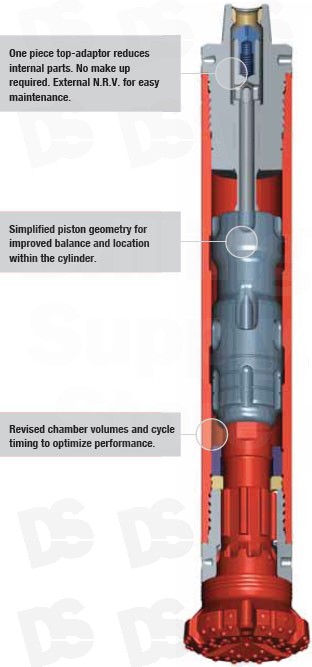

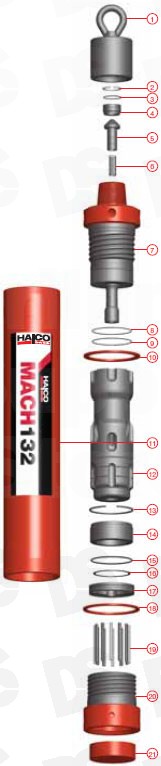

Mach 132 has a one piece top-adaptor with N.R.V. (Non-Return-Valve) fitted for easy inspection and service, with integral finger to reduce maintenance and eliminate shimming which increases service intervals. Servicing requires only a few simple tools. Mach 132
has no liner which increases the 140 kg piston blow energy and reduces parts required. This hammer is suitable for use with overburden systems.
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 381 - 489 mm (15 - 19 1/4").
Available Shanks: IR DHD 112.
