DOMINATOR 20

More Views

DOMINATOR 20
The valved design of the Dominator 20 provides high performance at low pressure. A non return valve is fitted to prevent flooding when drilling in water. The Dominator 20 has a strong robust design to withstand heavy duty applications.
The Dominator 20 is fitted with adjustable chokes to give three levels of air volumes for different drilling conditions.
Dominator 20 shank has a long service life and reduces contact stresses and wear rates.
Description

Details

HAMMER OVERVIEW
Hammer Type
Dominator 20
600423
Part Number
  Shank
Halco 2
  Top Thread
50 mm DIN 405 6TPI BOX
  Flat Hammer Size
48 mm (1.890")
  Weight
12.4 Kg (27.34 lbs)
  Outside Diameter
62 mm (2.44”)
  Make Up Length
817 mm (32.16”)
  Recommended Maximum Thrust
150 kg (330 lbs)

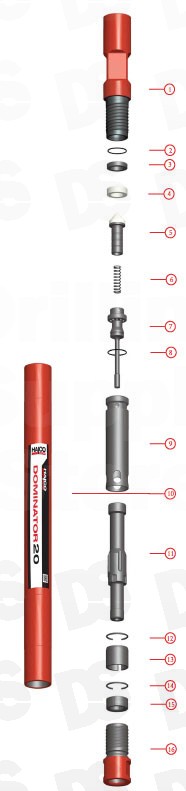

PART LIST
Hammer Type
Dominator 20
Shank
Halco 2
Model Number
600423
Item
Description
Part Number
1
  Top Adaptor
604924
2
  O’Ring
768219
3
  Spacer Ring
604734
4
  Make Up Ring
604735
5
  N.R.V.
604733
6
  N.R.V. spring
760162
7
  Air Distributor
604921
8
  O’Ring
760220
9
  Liner
604920
10
  Cylinder
604923
11
  Piston
602717
12
  Snap Ring
783063
13
  Guide Bush
604922
14
  Snap Ring
783063
15
  Bit Retaining Ring
604731
16
  Chuck
604732
SK
  Service Kit
SK86
RK
  Repair Kit
RK142


DRILL BITS
Bit
Diameter
Face
Button
Weight
Part No
mm
inch
Design
Type
Qty/Dia
( kg )
 Halco Shank
650952
70
2 3/4
Flat
Domed
4 x 9 mm / 6 x 11 mm
2.4
650953
76
3
Flat
Domed
5 x 9 mm / 6 x 11 mm
2.5
