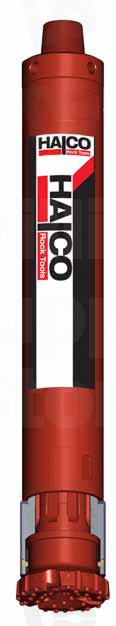

Halco Dominator 350

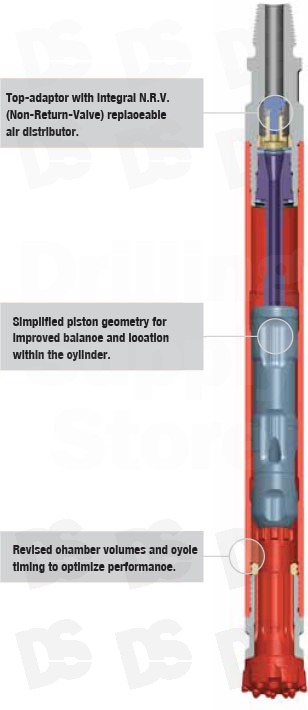

The Super Dominator 350is a high performance hammer for medium to hard rock conditions. Dominator 350 has no internal liner which allows a larger piston diameter for greater blow energy.
Dominator 350 has fewer parts than any other 3 inch hammer in the market. This allows an easy maintenance and servicing with only a few simple tools required.
Suitable for operation at air pressures of 100 - 350 psi (7 - 24 bar).
Drilling diameters of 90 mm - 104 mm (3 1/2 - 4 3/32").
Available Shanks:
IR 3.5
Description

Details

HAMMER OVERVIEW
Hammer Type
Dominator 350
Part Number
600199
  Shank
IR 3.5
  Top Thread
2 3/8 Api Reg Pin
  Hammer Flat Size
63 mm (2.480")
  Weight
23 kg
  Outside Diameter
81 mm (3 3/16")
  Make Up Length
832 mm (32 3/4")
  Recommended Minimum Thrust
150 kg (330 lbs)
  Recommended Maximum Thrust
300 kg (660 lbs)

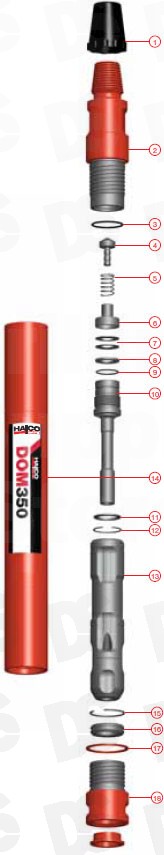

PARTS LIST
Hammer Type
Dominator 350

Shank
IR 3.5

Model Number
600199

Item
Part Number
Description

1
200111
  Thread Protector

2
602980
  Top-Adaptor

3
768098
  O'Ring

4
602328
  N.R.V.

5
760100
  N.R.V. Spring

6
602971
  N.R.V. Housing

7
760094
  Disk Springs

8
602972
  Thrust Washer

9
768033
  O'Ring

10
603108
  Air Distributor

603007
  Air Distributor Removal Tool

11
602979
  Washer

12
783035
  Snap Ring

13
603107
  Piston

14
602974
  Cylinder

15
783036
  Snap Ring

16
602976
  Bit Retaining Rings

17
602977
  Chuck Spacer

18
602978
  Chuck

19
741045
  End Cap

SK
SK27
  Service Kit

RK
RK47
  Repair Kit

602922
  Foot Valve

603061
  F/v Tool - Body

601659
  F/v Tool - Pusher

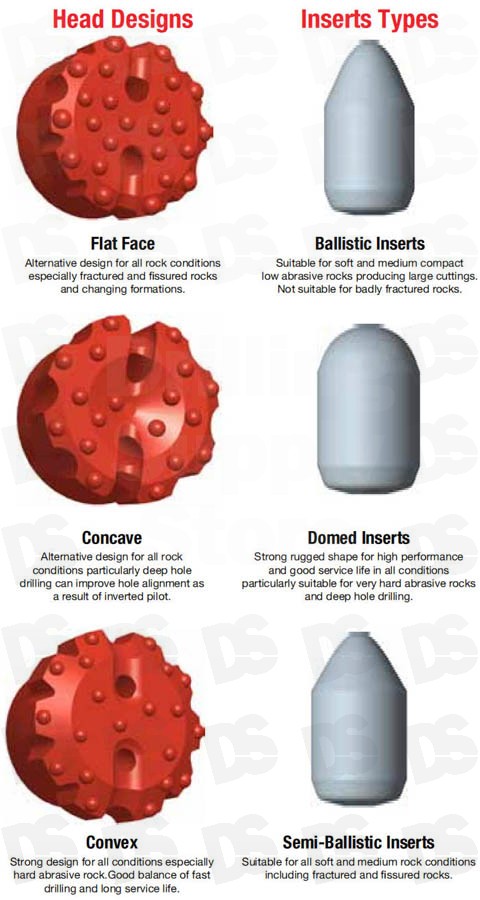

DRILL BITS
Bit
Diameter
Face
Buttons
Weight

Part No
mm
inch
Design
Type
Qty/Dia
(kg)
IR 3.5 Shank - Dominator/Dart 350
650622
90
3 1/2
Convex
Semi-Ballistic
13 x 11 mm
3.8

650623
90
3 1/2
Convex
Domed
13 x 11 mm
3.8

650609
95
3 3/4
Convex
Semi-Ballistic
15 x 11 mm
4.0

650620
95
3 3/4
Convex
Domed
15 x 11 mm
4.0

650610
100
3 15/16
Convex
Ballistic
15 x 11 mm
4.5

650621
100
3 15/16
Convex
Domed
15 x 11 mm
4.5

650624
104
4 1/8
Convex
Domed
8 x 13 mm/ 8 x 11 mm
4.9
