Halco Mach 303

More Views

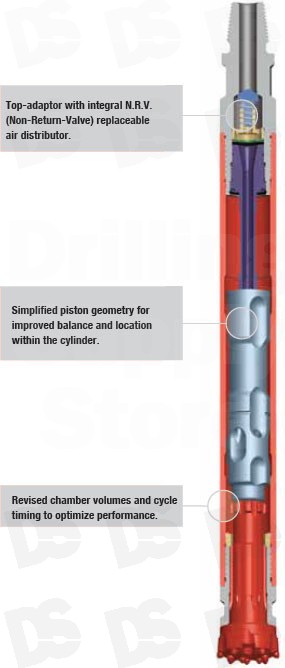

Halco Mach 303

Mach 303 is a general purpose hammer for small hole drilling used in applications such as seismic, geological survey, micro-piling, floor, wall and roof-bolting or for blast-holes where environmental considerations limit hole size and blasting procedures. The Mach 303 uses less air than most other 3 inch hammers in its range which allows you to use a smaller compressor and gain in economy. The hammer is suitable for drilling at a wide range of air pressures in both soft and hard rock conditions.

Suitable for operation at air pressures of 100 - 350 psi (7 - 24 bar).
Drilling diameters of 85 - 100 mm (3 3/8 - 4").
Available Shanks: Halco Mach 303.

Description

Details

HAMMER OVERVIEW
Hammer Type
Mach 303
Part Number
600080
  Shank
Halco Mach 303
  Top Thread
2 3/8 Api Reg Pin
  Hammer Flat Size
60 mm (2.362")
  Weight
20 kg
  Outside Diameter
77 mm (3.1/32")
  Make Up Length
822 mm (32.1/3")
  Recommended Minimum Thrust
150 kg (330 lbs)
  Recommended Maximum Thrust
300 kg (660 lbs)

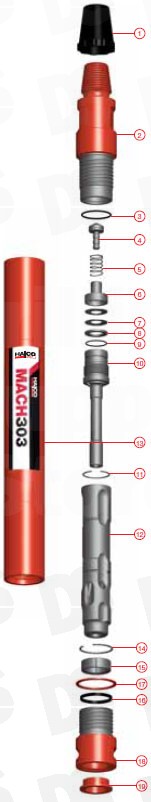

PART LIST
Hammer Type
Mach 303

Shank
Halco
SK01
RK01

Model Number
600080
Contents

Item
Description
Part Number
Quantities

1
  Thread Protector
200111
-

2
  Top-Adaptor
602403
-

3
  O'Ring
768098
2

4
  N.R.V.
602328
-
1

5
  N.R.V. spring
760100
2

6
  N.R.V. housing
602327
-

7
  Disk Springs
760094
2

8
  Thrust Washer
601920
-

9
  O'Ring
768033
2

10
  Air Distributor
601975
-
1

  Air Distributor Removal Tool
603007
-

11
  Snap Ring
777039
2

12
  Piston
602542
-

13
  Cylinder
601890
-

14
  Snap Ring
783016
2

15
  Bit Retaining Rings
601995
-
1

16
  Chuck Lock Ring
602304
2

17
  Chuck Spacer
601760
1

18
  Chuck
601892
-
1

19
  End Cap
741012
-

SK
  Service Kit
SK01

RK
  Repair Kit
RK01

  Foot Valve
601921

  F/V tool - Body
601922

    F/V tool - Pusher
601659



DRILL BITS
Bit
Diameter
Face
Button
Weight

Part No
mm
inch
Design
Type
Qty/Dia
( kg )

 Halco Shank - Mach 303
650567
85
3 11/32
Convex
Domed
11 x 11 mm
3.6

650569
90
3 1/2
Convex
Domed
11 x 11 mm
3.7

650860
90
3 1/2
Convex
Semi-Ballistic
13 x 11 mm
3.7

650731
100
3 15/16
Flat
Domed
16 x 11 mm
4.5
