Super Dominator 400

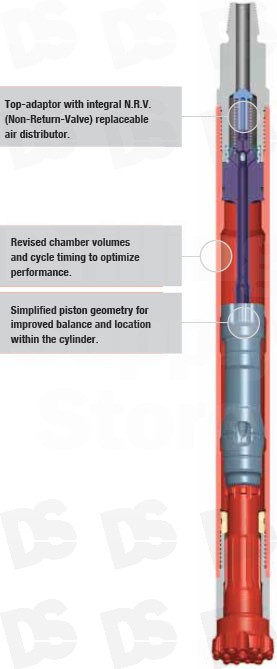

The Super Dominator 400 is a heavy duty hammer with thicker 98 mm (3.8") diameter outer components to provide an extended service life in abrasive conditions and is also suitable for waterwell drilling.
The Super Dominator 400 is designed for maximum performance at higher pressures.

Suitable for operation at air pressures of 100 - 350 psi (7 - 24 bar).
Drilling diameters of 108 mm - 150 mm (4 1/4 - 5 7/8").
Available Shanks: Halco Mach 44, A34-15/SD4, IR DHD 340A.

Description

Details

HAMMER OVERVIEW
Hammer Type
Super Dominator 400
Part Number
600224
600226
600258
  Shank
Halco
Mach 44
Sandvik Mission A34 -15/SD4
Ingersoll Rand DHD 340A
  Top Thread
2 3/8 API REG PIN
  Hammer Flat Size
65 mm (2.560")
  Weight
38 kg
  Outside Diameter
98 mm (3 7/8")
  Make Up Length
1042 mm (41")
  Recommended Minimum Thrust
250 kg (550 lbs)
  Recommended Maximum Thrust
500 kg (1100 lbs)

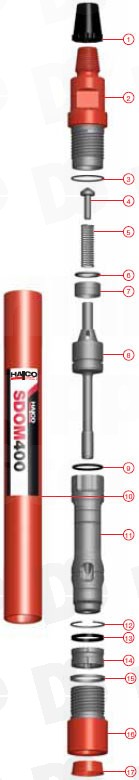

PART LIST
Hammer Type
Super Dominator 400

Shank
Halco-SP
A34-15 / SD4
DHD340A

Model Number
600224

600226

600258

Item
Description
Part Number
1
  Thread Protector
200111

2
  Top-Adaptor
603215

3
  O Ring
768040

4
  N.R.V.
602633

5
  N.R.V. Spring
760108

6
  Shim - 4.9mm
602634

  Shim - 5.3mm
602635

  Shim - 5.7mm
602636

7
  Compression Spring
760107

8
  Air Distributor
603266

9
  ORing
768050

10
  Cylinder
603390

603384

11
  Piston
603396

603441

603383

12
  Snap Ring
783029

13
  Containment Band
792037

-
14
  Bit Retaining Ring
603793

603439

603586

15
  Chuck Lock Ring
602733

16
  Chuck
603273

603274

603218

17
  End Cap
741019

741046

SK
  Service Kit
SK30

SK45

RK
  Repair Kit
RK52

RK42

RK83

  Foot Valve
601641

601842

601773

  F/V Tool - Body
601643

601848

601643

  F/V Tool - Pusher
601644


DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/dia
Size
( kgs )
  Super Dominator 400 Halco Shank
650580
108
4 1/4
Concave
Ballistic
14 x 13 mm
9.5

650788
108
4 1/4
Convex
Domed
13 x 13 mm

9.5

650987
108
4 1/4
Convex
Semi-Ballistic
15 x 13 mm

9.1

653248
108
4 1/4
Concave
Domed / Ballistic
8 x 11 mm D/8 x 11 mm

9.1

650931
110
4 5/16
Convex
Domed
15 x 13 mm

9.6

653106
110
4 5/16
Convex
Semi-Ballistic
18 x 11 mm

9

650932
115
4 1/2
Convex
Domed
8 x 14 mm / 8 x 13 mm

9.7

650936
115
4 1/2
Convex
Ballistic
16 x 13 mm

9.7

650969
115
4 1/2
Convex
Semi-Ballistic
16 x 13 mm

9.6

653136
115
4 1/2
Convex
Parabolic
17 x 14 mm

9.5

653249
115
4 1/2
Concave
Domed/Ballistic
8 x 13 mm D/8 x 13 mm

9.6

650933
120
4 3/4
Convex
Domed
8 x 14 mm / 8 x 13 mm

10

650466
127
5
Convex
Domed
16 x 13 mm
Y
11

650925
127
5
Convex
Semi-Ballistic
16 x 13 mm
Y
10.7

650073
130
5 1/8
Convex
Ballistic
16 x 13 mm
Y
10.9

650444
140
5 1/2
Convex
Domed
17 x 13 mm
Y
12.5

650445
150
5 7/8
Convex
Domed
17 x 13 mm
Y
13.5

  IR DHD 340A Shank/Atlas Copco Cop 44
650950
108
4 1/4
Convex
Domed
15 x 13 mm

8

650968
108
4 1/4
Convex
Semi-Ballistic
15 x 13 mm

10

650949
110
4 5/16
Convex
Domed
15 x 13 mm

8.1

650961
110
4 5/16
Convex
Semi-Ballistic
15 x 13 mm

8.1

653091
110
4 5/16
Convex
Parabolic
14 x 14 mm

8.5

650526
115
4 1/2
Convex
Domed
16 x 13 mm

8.2

650625
115
4 1/2
Concave
Domed/
Semi-Ballistic
8 x 14 mm D/6 x 13 mm S/B

8.2

650955
115
4 1/2
Flat
Domed
8 x 14 mm/10 x 13 mm

8.3

650967
115
4 1/2
Convex
Semi-Ballistic
16 x 13 mm

8.5

650680
120
4 3/4
Concave
Domed/
Semi-Ballistic
8 x 13 mm/8 x 13 mm

10

650612
121
4 3/4
Convex
Semi-Ballistic
14 x 13 mm

9.5

650611
127
5
Concave
Domed
16 x 13 mm
Y
9.5

650966
127
5
Concave
Semi-Ballistic
16 x 13 mm
Y
9.6

650013
127
5
Convex
Domed
16 x 13 mm
Y
10.6

650614
130
5 1/8
Concave
Domed/
Semi-Ballistic
8 x 14 mm D/8 x 13 mm S/B
Y
10.1

650675
130
5 1/8
Convex
Semi-Ballistic
16 x 13 mm
Y
9.2

653094
140
5 1/2
Concave
Domed
9 x 16 mm/9 x 14 mm
Y
11.8
