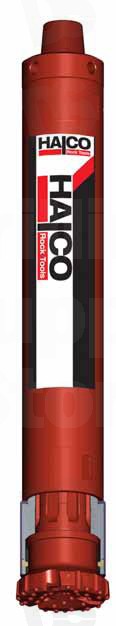

Halco Mach 44

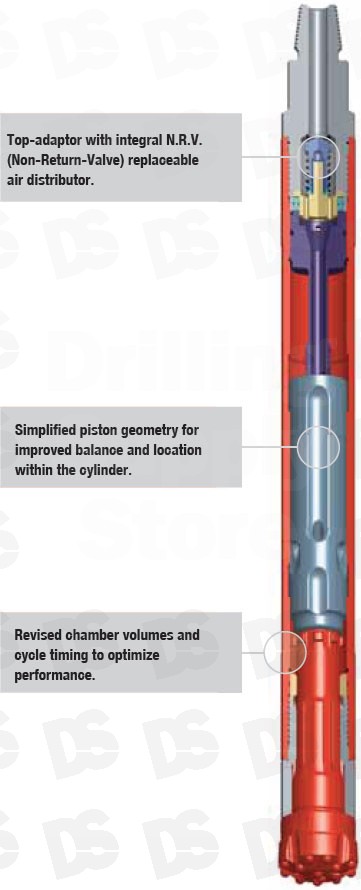

The Mach 44 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures. The Mach 44 has a proven track record of performance and reliability. The high frequency of the Mach 44 makes it ideal when using overburden systems for broken or unstable ground conditions.
Dominator 800 is available in three different shank types (see below).
Suitable for operation at air pressures of 100 - 350 psi (7 - 24 bar).
Drilling diameters of 105 mm - 150 mm (4 1/4 - 5 7/8").
Available Shanks:
Halco Mach 44
Description

Details

HAMMER OVERVIEW
Hammer Type
Mach 44
Part Number
600070
  Shank
Halco Mach 44
  Top Thread
2 3/8 API REG PIN
  Flat Hammer Size
65 mm (2.560")
  Weight
35.3 kg
  Outside Diameter
95 mm (3.3/4")
  Make Up Length
1000 mm (39.3/8")
  Recommended Minimum Thrust
250 kg (550 lbs)
  Recommended Maximum Thrust
500 kg (1100 lbs)

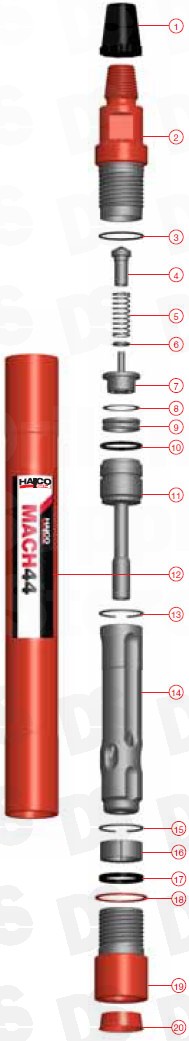

PARTS LIST
Hammer Type
Mach 44

Shank
Halco

Model Number
600070

Item
Part Number
Description

1
200111
  Thread Protector

2
601632
  Top-Adaptor

3
768040
  O'Ring

4
602330
  N.R.V.

5
760084
  N.R.V. Spring

6
601778
  N.R.V. Seat

7
601717
  N.R.V. Finger

8
601640
  Shim - 0.5mm

601720
  Shim - 1.0mm

601721
  Shim - 1.5mm

9
601635
  Compression Ring

10
768050
  O Ring

11
601868
  Air Distributor

12
601865
  Cylinder

13
783014
  Snap Ring

14
602456
  Piston

15
783014
  Snap Ring

16
601945
  Bit Retaining Ring

17
792037
  Containment Band

18
601431
  Chuck Spacer

19
601439
  Chuck

20
741019
  End Cap

SK
SK02
  Service Kit

RK
RK02
  Repair Kit

601641
  Foot Valve

601643
  F/v Tool - Body

601644
  F/v Tool - Pusher

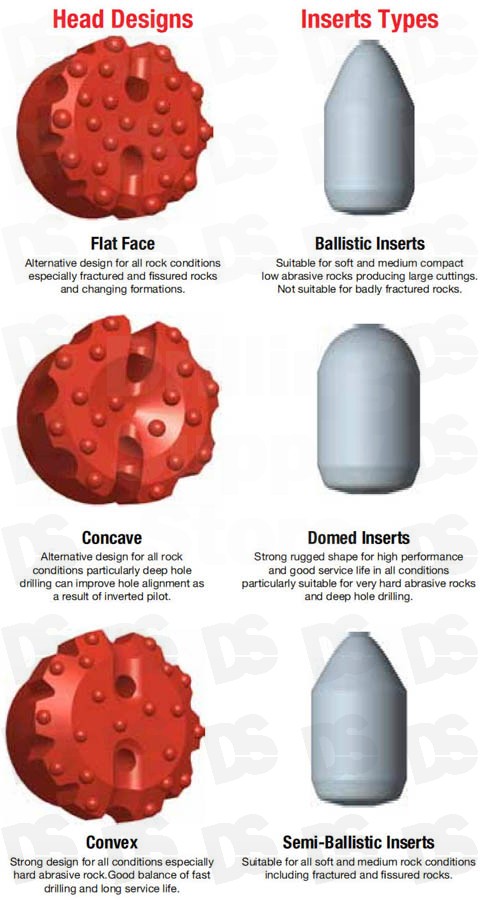

DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/Dia
Size
(kg)
Halco Mach 44
650788
108
4 1/4
Convex
Domed
13 x 13 mm

9.5

650987
108
4 1/4
Convex
Semi-Ballistic
15 x 13 mm

9.1

653248
108
4 1/4
Concave
Domed/ Ballistic
8 x 11 mm D / 8 x 11 mm B

9.1

650931
110
4 5/16
Convex
Domed
15 x 13 mm

9.6

653106
110
4 5/16
Convex
Semi-Ballistic
18 x 11 mm

9

650932
115
4 1/2
Convex
Domed
8 x 14 mm / 8 x 13 mm

9.7

650969
115
4 1/2
Convex
Semi-Ballistic
16 x 13 mm

9.6

653136
115
4 1/2
Convex
Parabolic
17 x 14 mm

9.5

653249
115
4 1/2
Concave
Domed / Ballistic
8 x 13 mm D / 8 x 13 mm B

9.6

650933
120
4 3/4
Convex
Domed
8 x 14 mm / 8 x 13 mm

10

650466
127
5
Convex
Domed
16 x 13 mm
Y
11

650073
130
5 1/8
Convex
Ballistic
16 x 13 mm
Y
10.9

650444
140
5 1/2
Convex
Domed
17 x 13 mm
Y
12.5

650445
150
5 7/8
Convex
Domed
17 x 13 mm
Y
13.5
