Halco GW500 HD

The New GW 500High performance hammer drills under a head of water typically suited to Water Well and Geothermal applications.

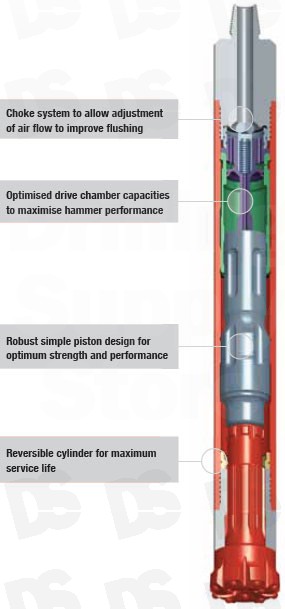

Its robust non ported piston design improves the hammer strength and increases air flow efficiency. A choke facility helps to adjust air flow through the hammer.
The 500 GW is fitted with a reversible cylinder to prolong the service life.

Suitable for operation at air pressures up to 30 bar.
Available Shanks:
IR DHD 350.

Description

Details

HAMMER OVERVIEW
Hammer Type
GW500 HD
Part Number
600390
600401
  Shank
Ingersoll Rand DHD350
  Top Thread
2 3/8 API REG PIN
3 1/2 API REG PIN
  Weight
60 kg
  Outside Diameter
126 mm (4.961")
  Make Up Length
1074 mm (42.283")
  Recommended Minimum Thrust
400 kg (900 lbs)
  Recommended Maximum Thrust
900 kg (1980 lbs)

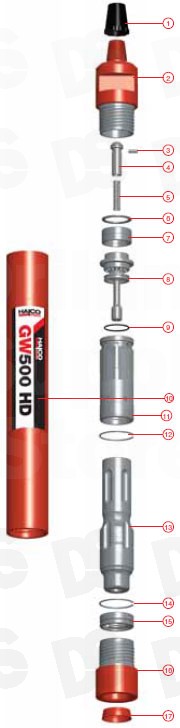

PART LIST
Hammer Type
GW500 HD

Shank
DHD350

Model Number
600390
600401

Item
Description
Part Number
1
  Thread Protector
200111

2
  Top Adaptor
604440
604558

3
  NRV Plug - Blank
604480

  NRV Plug - 1/8"
604481

  NRV Plug - 3/16"
604482

4
  NRV
604444

5
  NRV Spring
760079

6
  Shim - 4.5mm
604446

  Shim - 5.0mm
604447

  Shim - 5.5mm
604448

7
  Compression Spring
760158

8
  Air Distributor
604442

9
  O Ring
768202

10
  Cylinder
604436

11
  Liner
604441

12
  Snap Ring
783054

13
  Piston
604439

14
  Snap Ring
783054

15
 Bit Retaining Rings
604438

16
  Chuck
604437

17
  End Cap
741020


SK
  Service Kit
SK65

RK
  Repair Kit
RK103


    Foot Valve
601902

    F/V tool -Body
601877

    F/V tool -Pusher
601708



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty / Dia
Size
(kg)
Ingersoll Rand Shank - DHD350R / Atlas Copco Cop 54
650772
140
5 1/2
Concave
Domed
8 x 13 mm / 8 x 16mm

16.0

650677
140
5 1/2
Concave
Domed/
Semi-Ballistic
8 x 16 mmd / 7 x 16 mmSB

16.4

653205
140
5 1/2
Flat
Domed
7 x 16 mm D / 8 x 16 mm Long

16.2

653070
140
5 1/2
Convex
Semi-Ballistic
8 x 16 mm SB / 8 x 16 mm Long SB
15.9

653257
146
5 3/4
Concave
Domed
15 x 16 mm
16.3

650676
150
5 7/8
Concave
Domed/
Semi-Ballistic
9x16 mm D/10 x 16 mm SB
Y
17.8

650711
152
6
Convex
Domed
20 x 16 mm
Y
17.8

653099
160
6 1/4
Concave
Domed
10 x 16 mm / 8 x 20 mm
Y
21.4

653092
165
6 1/2
Concave
Domed
10 x 16 mm / 8 x 20 mm
Y
21.4
