Halco Mach 50

More Views

Halco Mach 50

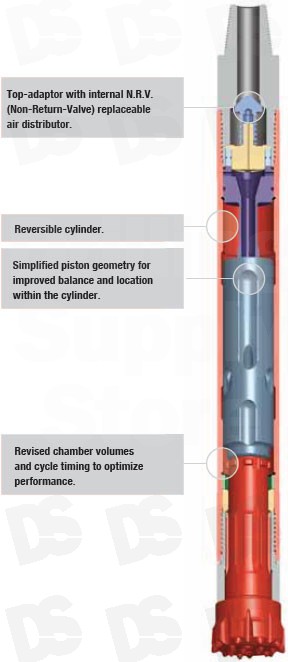

The Mach 50 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures. The hammer is fitted with a reversible cylinder to prolong the service life. Mach 50 is versatile and reliable, requiring only a few simple tools for servicing and maintenance.

This hammer is most suited for use with the Sim-Cas Overburden system because of the high frequency of the piston/cycle.

Suitable for operation at air pressures of 100 - 350 psi (7 - 24 bar).
Drilling diameters of 127 mm - 165 mm (5 - 6 1/2").
Available Shanks: Halco Mach 50.

Description

Details

HAMMER OVERVIEW
Hammer Type
Mach 50
Part Number
600046
  Shank
Halco Mach 50
  Top Thread
3 1/2" Api Reg Pin
  Hammer Flat Size
90 mm (3.544")
  Weight
54 kg
  Outside Diameter
114 mm (4.5")
  Make Up Length
1012 mm (40")
  Recommended Minimum Thrust
400 kg (900 Lbs)
  Recommended Maximum Thrust
900 kg (1980 Lbs)

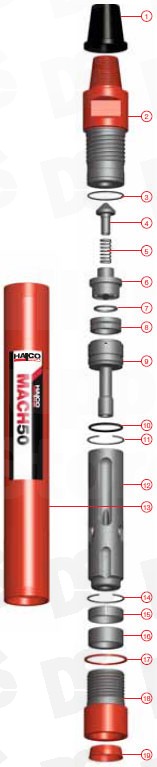

PARTS LIST
Hammer Type
Mach 50

Shank
Halco

Model Number
600046

Item
Part Number
Description

1
201701
  Thread Protector

2
601698
  Top-Adaptor

3
768043
  O'Ring

4
602285
  Non Return Valve

5
760084
  N.R.V. Spring

6
601702
  N.R.V. Finger

7
601706
  Shim

8
601700
  Make Up Ring

9
601699
  Air Distributor

10
768101
  O'Ring

11
783013
  Snap Ring

12
601695
  Piston

13
601694
  Cylinder

14
783013
  Snap Ring

15
601705
  Spacer

16
602117
  Bit Retaining Ring

17
601603
  Chuck Spacer

18
601602
  Chuck

19
741020
  End Cap

SK
SK03
  Service Kit

RK
RK04
  Repair Kit

601843
  Foot Valve

601847
  F/v Tool - Body

601708
  F/v Tool - Pusher



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/Dia
Size
(kg)
Halco Mach 50
650461
127
5
Convex
Domed
13 x 16 mm

15.0

650717
127
5
Concave
Ballistic
8 x 16 mm / 8 x 13mm

15.0

650913
135
5 5/16
Flat
Semi-Ballistic
9 x 16 mm / 9 x 13 mm

16.0

650578
140
5 1/2
Convex
Domed
14 x 16 mm

15.5

650989
140
5 1/2
Concave
Domed
9 x 16 mm / 9 x 14 mm

17.0

650990
146
5 3/4
Concave
Domed
8 x 18 mm / 7 x 16 mm

17.8

650463
150
5 7/8
Convex
Domed
14 x 16 mm
Y
18.0

650464
165
6 1/2
Convex
Domed
16 x 16 mm
Y
18.5
