Halco Super Dominator 550 HD QL 50

The Super Dominator 550 HD QL 50 has been designed to give maximum performance in blast-hole applications. This hammer has been tuned to efficiently utilize the air supply to give optimum penetration rates. The Super Dominator 550 HD QL 50 is suitable for drilling over a wide range of air pressures, excelling at higher pressures.

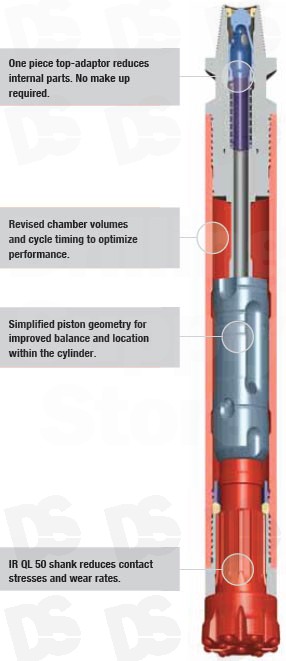

The unique top-adaptor with N.R.V. (Non-Return-Valve) makes this hammer easy to maintain and service.

Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 135 mm - 165 mm (5 5/16 - 6 1/2").
Available Shanks: IR QL 50.

Description

Details

HAMMER OVERVIEW
Hammer Type
Super Dominator 550 HD QL 50
Part Number
600294
  Shank
Ingersoll Rand QL50
  Top Thread
3 1/2" Api Reg Pin
  Flat Hammer Size
90 mm (3.544")
  Weight
67 kg
  Outside Diameter
124.5 mm (4.85")
  Make Up Length
955 mm (37.60")
  Recommended Minimum Thrust
400 kg (900 lbs)
  Recommended Maximum Thrust
900 kg (1980 lbs)

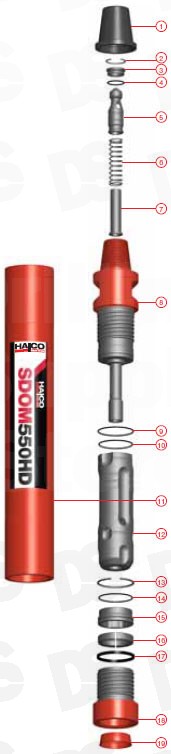

PARTS LIST
Hammer Type
Super Dominator 550 HD

Shank
QL 50

Model Number
600294

Item
Part Number
Description

1
201701
  Thread Protector

2
783028
  Snap Ring

3
603510
  N.R.V. Seat

4
768144
  O'Ring

5
603554
  N.R.V.

6
760135
  N.R.V. Spring

7
603652
  N.R.V. Shield

8
603661
  Top-Adaptor

9
768091
  O'Ring

10
768043
  O'Ring

11
603370
  Cylinder

12
603524
  Piston

13
783025
  Snap Ring

14
768043
  O'Ring

15
603520
  Bit Guide Bush

16
603522
  Bit Retaining Ring

17
603104
  Chuck Lock Ring

18
603660
  Chuck

17
741020
  End Cap

SK
SK40
  Service Kit

RK
RK77
  Repair Kit

603252
  Foot Valve

603254
  F/v Tool - Body

603253
  F/v Tool - Pusher



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/Dia
Size
(kg)
Ingersoll Rand QL 50 Shank
653031
135
5 5/16
Flat
Domed
7 x 16 mm + 8 x 16 mm Long

15.3

653235
140
5 1/2
Flat
Domed
7 x 16 mm + 8 x 16 mm Long
16.3

653149
145
5 1/2
Concave
Domed
15 x 16mm
Y
16.0

653032
150
5 7/8
Flat
Domed
8 x 16 mm + 8 x 16 mm Long
Y
16.6

653246
165
6 1/2
Convex
Domed
20 x 16 mm
Y
19.0
