Halco GW 600

The New GW 600 high performance hammer drills under a head of water typically suited to water well
and geothermal applications.

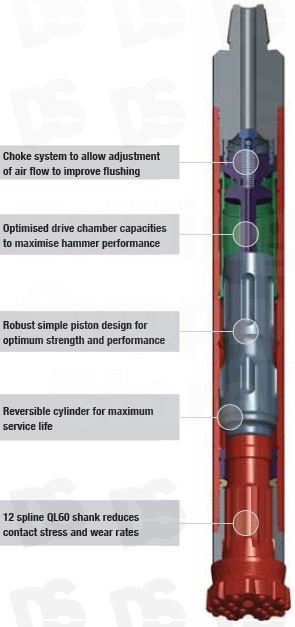

Its robust non ported piston design improves the hammer strength and increases air flow efficiency. A choke facility helps to adjust air flow through the hammer.
The GW 600 is fitted with a reversible cylinder to prolong the service life.

Available Shanks: IR QL 60.

Description

Details

HAMMER OVERVIEW
Hammer Type
GW 600
GW 600 HD
Part Number
600397
600398
  Shank
Ingersoll Rand QL 60
  Top Thread
3 1/2" Api Reg Pin
  Flat Hammer Size
101mm (3.976")
  Weight
86 kg
100 kg
  Outside Diameter
140 mm (5.512")
146 mm (5.748")
  Make Up Length
1035.15 mm (40.754")
  Recommended Minimum Thrust
500 kg (1100 lbs)
  Recommended Maximum Thrust
1500 kg (3300 lbs)

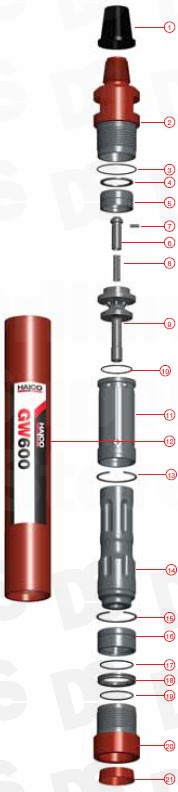

PART LIST
Hammer Type
GW600
GW600 HD

Shank
QL 60

Model Number
600397
600398

Item
Description
Part Number
1
  Thread Protector
201701

2
  Top Adaptor
604521
604562

3
  O-Ring
768140

4
  4mm M/UP Shim
601946

  5mm M/UP Shim
601947

  6mm M/UP Shim
601948

  7mm M/UP Shim
601949

5
  Compression Spring
760159

6
  NRV
604444

7
  NRV Bleed Plug Blank
604480

  NRV Bleed Plug 1/8"
604481

  NRV Bleed Plug 3/16"
604482

8
  Spring
760079

9
  Air Distributor
604514

10
  O'Ring
768043

11
  Liner
604519

12
  Cylinder
604517
604360

13
  Snap Ring
783056

14
  Piston
604520

15
  Snap Ring
783056

16
  Guide Bush
604518

17
  O-Ring
747105

18
  Bit Retaining Rings
604515

19
  O-Ring
747105

20
  Chuck
604516
604561

21
  End Cap
741042



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty
Size
(kg)
Ingersoll Rand QL 60 Shank
650094
156
6 1/8
Concave
Domed
16 x 16 mm

23.2

653139
165
6 1/2
Concave
Domed
18 x 18 mm

24.4

653160
171
6 3/4
Convex
Domed
19 x 18 mm

25.3

653128
178
7
Concave
Domed
8 x 20 mm + 11 x 16 mm
Y
26.2

653227
190
7 1/2
Concave
Domed
24 x 16 mm
Y
31.7

653142
203
8
Concave
Domed
31 x 16 mm
Y
34.1

653211
241
9 1/2
Concave
Domed
18 x 20 mm / 10 x 16 mm
Y
39.5
