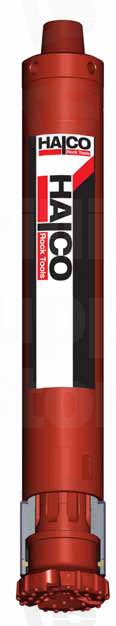

Halco SUPER DOMINATOR 600

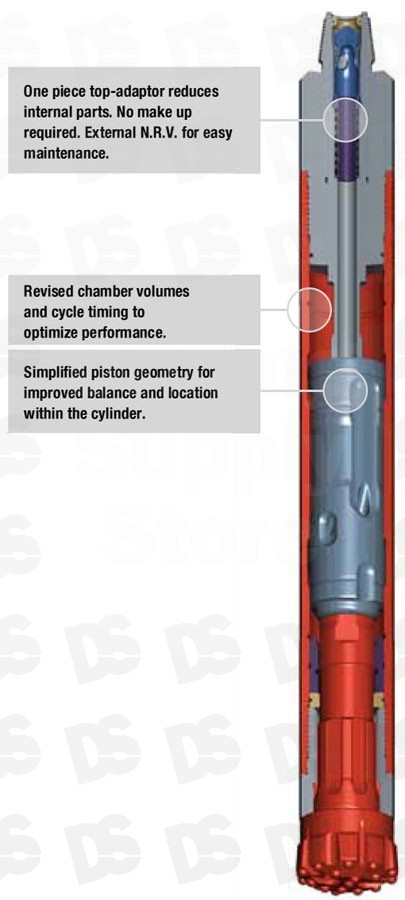

The Super Dominator 600 is one of the fastest 6” hammers specifically designed for high production drilling in blast-hole applications. The Super Dominator 600 is a reduced weight hammer with waterwell drilling capabilities. The unique one piece top-adaptor with N.R.V. (Non-Return-Valve) makes it easy to maintain and service the hammer. Super Dominator 600 requires only few tools to service and maintain the hammer. Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 135 mm - 165 mm (6 1/8 - 9 1/2").
Available Shanks: IR DHD 360

HAMMER OVERVIEW
Hammer Type Super Dominator 600
Part Number 600272
Shank Ingersoll Rand DHD 360
Top Thread 3 1/2" Api Reg Pin
Flat Hammer Size 101 mm (3.977")
Weight 100 kg
Outside Diameter 140 mm (5.511")
Make Up Length 1139 mm (44.842")
Recommended Minimum Thrust 500 kg (1100 lbs)
Recommended Maximum Thrust 1500 kg (3300 lbs)
Description

Details

  • Reverse Circulation Hammers

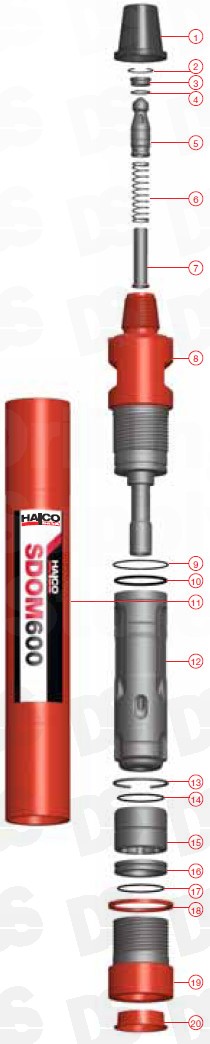

  • Ref Part no Description
    1 201701 Thread Protector
    2 783050 Snap Ring
    3 603872 N.R.V. Seat
    4 768112 O’Ring
    5 603554 Non Return Valve
    6 760135 N.R.V. Spring
    7 603652 N.R.V. Spring Shield
    8 603506 Top-Adaptor
    9 768140 O’Ring
    10 768055 O’Ring
    11 603584 Cylinder
    12 602891 Piston
    13 783017 Snap Ring
    14 747105 O’Ring
    15 602239 Bit Guide Bush
    16 603749 Bit Retaining Ring
    17 747105 O’Ring
    18 601942 Chuck Spacer
    19 602495 Chuck
    20 741009 End Cap
    SK Sk37 Service Kit
    RK Rk65 Repair Kit
    601595 Foot Valve
    601878 F/v Tool - Body
    601569 F/v Tool - Pusher

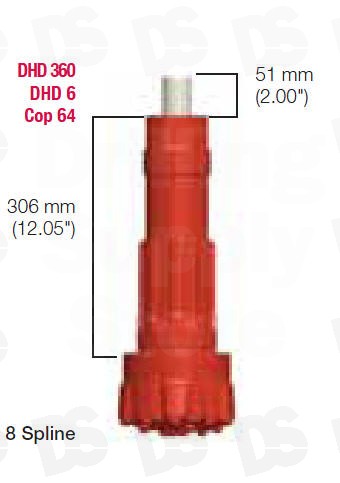

    DRILL BITS
    Bit Ø mm  Ø in Face  Button
    650783 152 6 Convex Domed
    650789 165 6 1/2 Concave Domed
    650795 165 6 1/2 Convex Domed
    653134 165 6 1/2 Convex Domed
    653038 170 6 3/4 Concave Domed
    653097 180 7 Concave Domed
    653098 190 7 1/2 Concave Domed
    653023 200 7 5/8 Convex Domed
    650673 203 8 Concave Domed
    650335 203 8 Convex Domed
    650684 220 8 5/8 Concave Domed
    650696 241 9 1/2 Flat Domed
