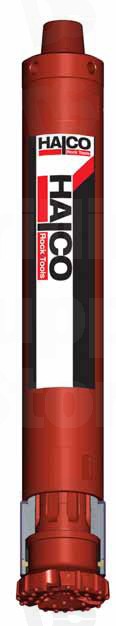

Halco DOMINATOR 600

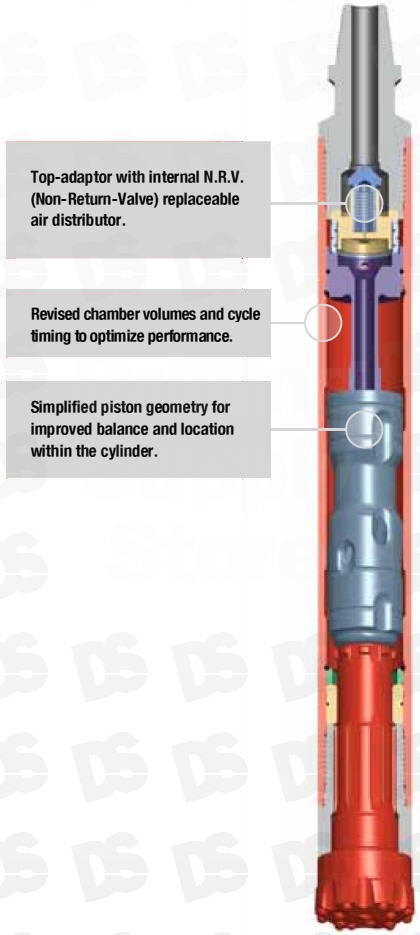

The Dominator 600 is a class leader in performance and is suitable for drilling at a wide range of air pressures, excelling at higher working pressures. Dominator 600 has a unique extended top-adaptor
with retract carbides on Ingersoll-Rand and Mission versions for digging out of drilled bores.
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 152 mm - 245 mm (6 - 9 5/8").
Available Shanks:
Halco Mach 60 shank
IR DHD 360
Sandvik Mission A53-25

Qty:

| Add to Compare

Description

Details

HAMMER OVERVIEW
Hammer Type		Dominator 600	Dominator 600	Dominator 600
Part Number		600151	600094	600152
Shank		Halco Mach 60	Ingersoll Rand DHD 360	Sandvik Mission A53-25
Top Thread		3 1/2" Api Reg Pin
Flat Hammer Size		90 mm (3.544")	101 mm (3.977")	101 mm (3.977")
Weight		89 kg
Outside Diameter		139 mm (5.472")
Make Up Length		1208 mm (47.559")
Recommended Minimum Thrust		500 kg (1100 lbs)
Recommended Maximum Thrust		1500 kg (3300 lbs)

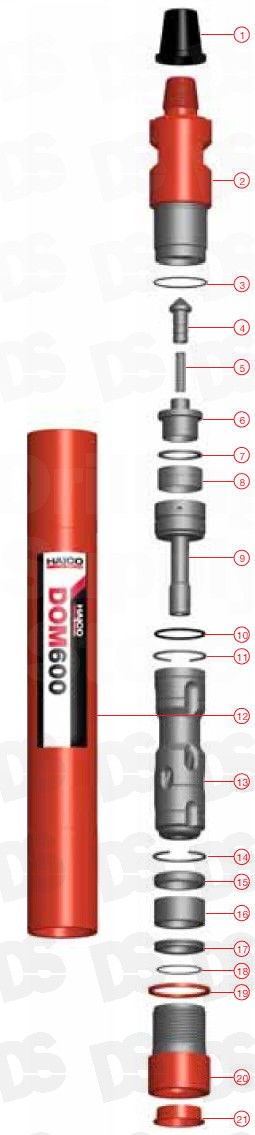

PART LIST
Hammer Type		Dominator 600	Dominator 600	Dominator 600
Shank		Mach 60	IR DHD 360	A53-25
Model Number		600151	600094	600152
Item	Description	Part Number
1	Thread Protector	201701
2	Top-Adaptor	601935	602240
3	O’Ring	768140
4	Non Return Valve	601560
5	N.R.V. Spring	760079
6	N.R.V. Housing	601940
7	Shim - 4mm	601946
8	Shim - 5mm	601947
9	Shim - 6mm	601948
10	Shim - 7mm	601949
11	Compression Spring	760096
12	Air Distributor	601979
13	O’Ring	768055
14	Snap Ring	783017
15	Cylinder	601937
16	Piston	602600	602891	602600
17	Snap Ring	783017
18	Bottom Spacer	601943	747105	601943
19	Bit Guide Bush	-	602239	601992
20	Bit Retaining Ring	601941	602504	601994
21	O’Ring	747105
22	Chuck Spacer	601942
23	Chuck	601936
24	Cap	741009

SK	Service Kit	SK05	SK21	SK06
RK	Repair Kit	RK07	RK35	RK08

	Foot Valve	601570	601595	601570
	F/V Tool - Body	601568	601878	601568
	F/V Tool - Pusher	601569

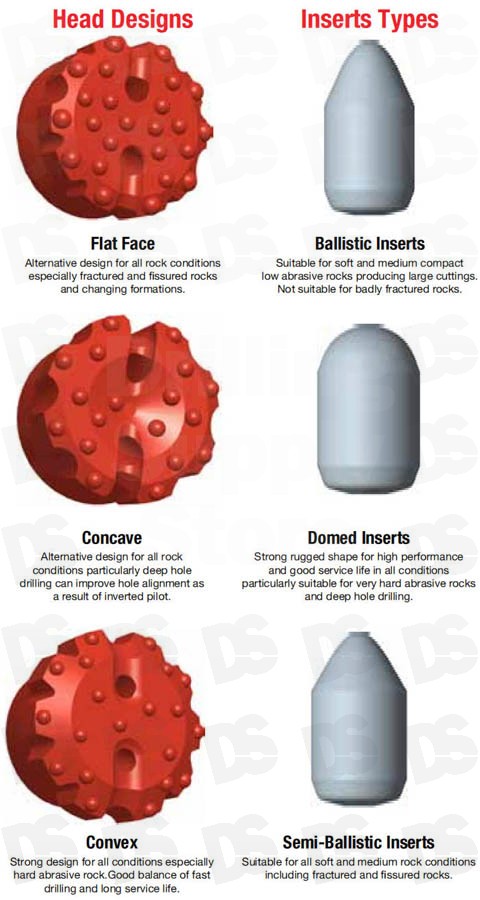

DRILL BITS
Bit	Diameter		Face	Button		Weight
Part No	mm	inch	Design	Type	Qty	( kgs )
Sandvik Mission A53-15 / SD6
650550	151	6	Concave	Domed	16 x 16 mm	26
650790	165	6 1/2	Concave	Domed	18 x 16 mm	27.5
650940	165	6 1/2	Convex	Domed	19 x 16 mm	27.5
650701	171	6 3/4	Concave	Domed	24 x 16mm	26.2
650695	178	7	Flat	Domed	20 x 16 mm	29
650008	191	7 1/2	Concave	Domed	24 x 16 mm	30
650336	203	8	Convex	Domed	20 x 16 mm	36
650065	216	8 1/2	Concave	Domed	22 x 16 mm	36
Ingersoll Rand (DHD360) / Atlas Copco Cop64
650783	152	6	Convex	Domed	20 x 16 mm	25
650793	152	6	Concave	Domed	17 x 16 mm	25
650789	165	6 1/2	Concave	Domed	18 x 16 mm	25.5
650795	165	6 1/2	Convex	Domed	20 x 16mm	26
650605	165	6 1/2	Flat	Domed	12 x 16 mm / 8 x 16 mm Long	25.8
650897	165	6 1/2	Flat	Domed	8 x 20 mm / 9 x 16 mm Long	26.2
650016	165	6 1/2	Flat	Domed/Wear	12 x 16 mm / 8 x 16 mm L/8 x 13 mm W	26.7
653134	165	6 1/2	Convex	Domed	16 x 16 mm / 12 x 16 mm Long	25
650982	170	6 3/4	Convex	Domed	6 x 16 mm / 13 x 18 mm	26.5
653038	170	6 3/4	Concave	Domed	18 x 16 mm	26.5
653097	180	7	Concave	Domed	18 x 16 mm	27.3
650686	180	7	Concave	Domed/S-Ball	8 x 16 mm D/10 x 16 mm S-B	27.3
653098	190	7 1/2	Concave	Domed	24 x 16 mm	30
653023	200	7 7/8	Convex	Domed	21 x 16 mm	34.5
650673	203	8	Concave	Domed	31 x 16 mm	35.2
650335	203	8	Convex	Domed	20 x 16 mm	35
650684	220	8 5/8	Concave	Domed	22 x 16 mm	40
650696	241	9 1/2	Flat	Domed	18 x 16 mm / 10 x 20 mm	50
Halco Mach 60 Shank
650585	152	6	Convex	Domed	16 x 16 mm	23.5
650939	165	6 1/2	Convex	Domed	19 x 16 mm	26
650927	170	6 3/4	Flat	Domed	19 x 16 mm	26
650474	178	7	Concave	Domed	18 x 16mm	30
650354	191	7 1/2	Flat	Domed	21 x 16 mm	32.5
650440	200	7 7/8	Convex	Domed	20 x 16 mm	34
650681	203	8	Concave	Domed	31 x 16 mm	35
650441	225	8 7/8	Convex	Domed	26 x 16 mm	42
650457	245	9 5/8	Convex	Domed	27 x 16 mm	49
