Halco Mach 60

More Views

Halco Mach 60

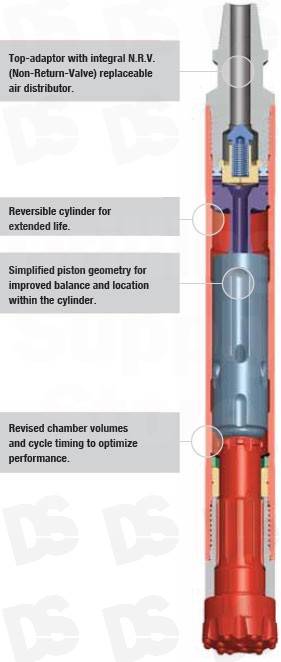

The Mach 60 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures. The hammer is fitted with a reversible cylinder to prolong service life.
Mach 60 is versatile and reliable, requiring only a few simple tools for servicing and maintenance. Mach 60 is very economical to operate due to its relatively low air consumption and has a unique Mach 60 shank for full bit support. This hammer is most suited for use with the Sim-Cas Overburden system because of the high frequency of the piston/cycle.

Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 152 mm - 216 mm (6 - 9 5/8").
Available Shanks: Halco Mach 60.

Description

Details

HAMMER OVERVIEW
Hammer Type
Mach 60
Part Number
600035
  Shank
Halco Mach 60
  Top Thread
3 1/2" Api Reg Pin
  Hammer Flat Size
90 mm (3.544")
  Weight
89 kg
  Outside Diameter
138 mm (5.433)
  Make Up Length
1095 mm (43.110")
  Recommended Minimum Thrust
500 kg (1100 lbs)
  Recommended Maximum Thrust
1500 kg (3300 lbs)

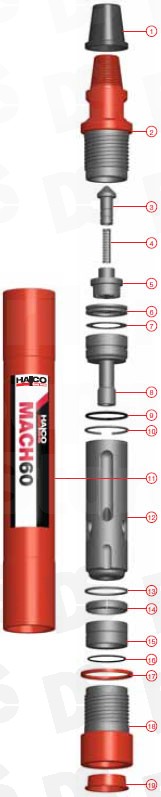

PARTS LIST
Hammer Type
Mach 60

Shank
Halco

Model Number
600035

Item
Part Number
Description

1
201701
  Thread Protector

2
601555
  Top-Adaptor

3
601560
  Non Return Valve

4
760079
  N.R.V. Spring

5
601558
  N.R.V. Housing

6
601562
  Compression Ring

7
601590
  Shim - 0.50mm

601797
  Shim - 1.00mm

601798
  Shim - 1.50mm

8
601557
  Air Distributor

9
768130
  O'Ring

10
783012
  Snap Ring

11
601553
  Cylinder

12
601554
  Piston

13
783012
  Snap Ring

14
601571
  Bottom Spacer

15
601573
  Bit Retaining Ring

16
747105
  O'Ring

17
601563
  Chuck Spacer

18
601556
  Chuck

19
741009
  Cap

SK
SK07
  Service Kit

RK
RK10
  Repair Kit

601570
  Foot Valve

601568
  F/v Tool - Body

601569
  F/v Tool - Pusher



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/Dia
Size
(kg)
Halco Mach 60 Shank
650585
152
6
Convex
Domed
16 x 16 mm

23.5

650939
165
6 1/2
Convex
Domed
19 x 16 mm

26

650927
170
6 3/4
Flat
Domed
19 x 16 mm

26

650474
178
7
Convex
Domed
18 x 16 mm
Y
30

650354
191
7 1/2
Convex
Domed
21 x 16 mm
Y
32.5

650440
200
7 7/8
Convex
Domed
20 x 16 mm
Y
34

650681
203
8
Concave
Domed
31 x 16 mm
Y
35

650363
216
8 1/2
Flat
Domed

650441
225
8 7/8
Convex
Domed
26 x 16 mm
Y
42

650457
245
9 5/8
Convex
Domed
27 x 16 mm
Y
49
