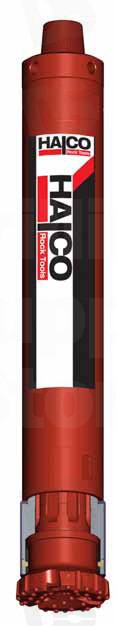

The Super Dominator 650 HD QL 60 has been designed to give maximum performance in blast-hole applications. This hammer has been tuned to efficiently utilize the air supply to give optimum penetration rates. The Super Dominator 650 HD QL 60 is suitable for drilling over a wide range of air pressures, excelling at higher pressures.

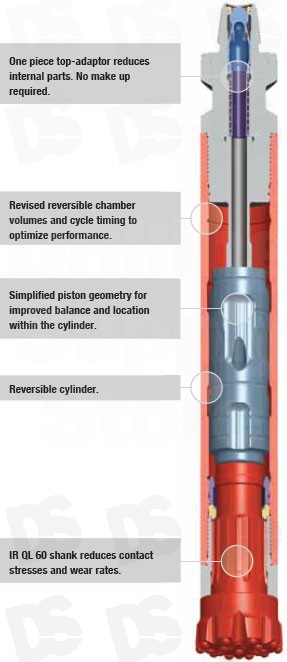

The unique top-adaptor with N.R.V. (Non-Return-Valve) makes this hammer easy to maintain and service.
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Top Thread 3 1/2" API Reg Pin.
Hammer Flat Size 101mm (3.977")
Weight 100Kg
Outside Diameter 146mm (5.748")
Make Up Length 1043mm (41.07")
Recommended
Maximum Thrust 1500Kg (3300 lbs)
