Halco Super Dominator 650

More Views

Halco Super Dominator 650

The Super Dominator 650 combines the raw power of the Super Dominator 600 with extended hammer life in abrasive conditions due to its heavy duty outside diameter and reversible cylinder. The unique one piece top-adaptor with N.R.V. (Non-Return-Valve) makes the hammer easy to inspect and maintain.
Super Dominator 650 requires only few tools to service and maintain the hammer.

Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 165 mm - 241 mm (6 1/2 - 9 1/2").
Available Shanks: IR DHD 360 Sandvik Mission A53-15/SD6.

Description

Details

HAMMER OVERVIEW
Hammer Type
Super Dominator 650
Part Number
600213
600233
  Shank
Ingersoll Rand
DHD 360

Sandvik Mission
A53-15/SD6

  Top Thread
3 1/2" Api Reg Pin
  Flat Hammer Size
101mm (3.977")
  Weight
104 kg
  Outside Diameter
146 mm (5.748")
  Make Up Length
1139 mm (44.842")
  Recommended Minimum Thrust
500 kg (1100 lbs)
  Recommended Maximum Thrust
1500 kg (3300 lbs)

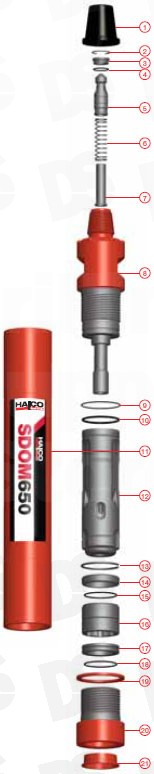

PART LIST
Hammer Type
Super Dominator 650

Shank
I.R DHD360

A53-15 / SD6

Model Number
600213
600233

Item
Description
Part Number
1
  Thread Protector
201701

2
  Snap Ring
783050

3
  N.R.V. Seat
603872

4
  O'Ring
768112

5
  Non Return Valve
603554

6
  N.R.V. Spring
760135

7
  N.R.V. Spring Shield
602652
603652

8
  Top-Adaptor
603643

9
  O'Ring
768140

10
  O'Ring
768055

11
  Cylinder
603151

12
  Piston
602891

602600

13
  Snap Ring
783017

14
  Bottom Spacer
-
601943

15
  O'Ring
747105

-

16
  Bit Guide Bush
602239

601992

17
  Bit Retaining Ring
603749

601994

18
  O'Ring
747105

19
  Chuck Spacer
601928

20
  Chuck
602595

602017

21
  End Cap
741009

SK
  Service Kit
SK28

SK44

RK
  Repair Kit
RK48

RK71


  Foot Valve
601595

601570


  F/V Tool - Body
601878

601568


  F/V Tool - Pusher
601569



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty
Size
(kg)
Ingersoll Rand (DHD360) / Atlas Copco Cop64
650789
165
6 1/2
Concave
Domed
18 x 16 mm

25.5

650795
165
6 1/2
Convex
Domed
20 x 16 mm

26

653134
165
6 1/2
Convex
Domed
16 x 16 mm / 12 x 16 mm Long

25

653038
170
6 3/4
Concave
Domed
18 x 16 mm

26.5

653097
180
7
Concave
Domed
18 x 16 mm
Y
27.3

653098
190
7 1/2
Concave
Domed
24 x 16 mm
Y
30

653023
200
7 7/8
Convex
Domed
21 x 16 mm
Y
34.5

650673
203
8
Concave
Domed
31 x 16 mm
Y
35.2

650684
220
8 5/8
Concave
Domed
22 x 20 mm
Y
40

650696
241
9 1/2
Flat
Domed
18 x 16 mm / 10 x 20 mm
Y
50

Sandvik Mission A53-15 / SD6
650790
165
6 1/2
Concave
Domed
18 x 16 mm

27.5

650940
165
6 1/2
Convex
Domed
19 x 16 mm

27.5

650701
171
6 3/4
Concave
Domed
24 x 16 mm

26.2

650695
178
7
Flat
Domed
20 x 16 mm
Y
29

650008
191
7 1/2
Concave
Domed
24 x 16 mm
Y
30

650336
203
8
Convex
Domed
20 x 16 mm
Y
36

650065
216
8 1/2
Concave
Domed
22 x 20 mm
Y
36
