Halco DOMINATOR 750

More Views

Halco DOMINATOR 750

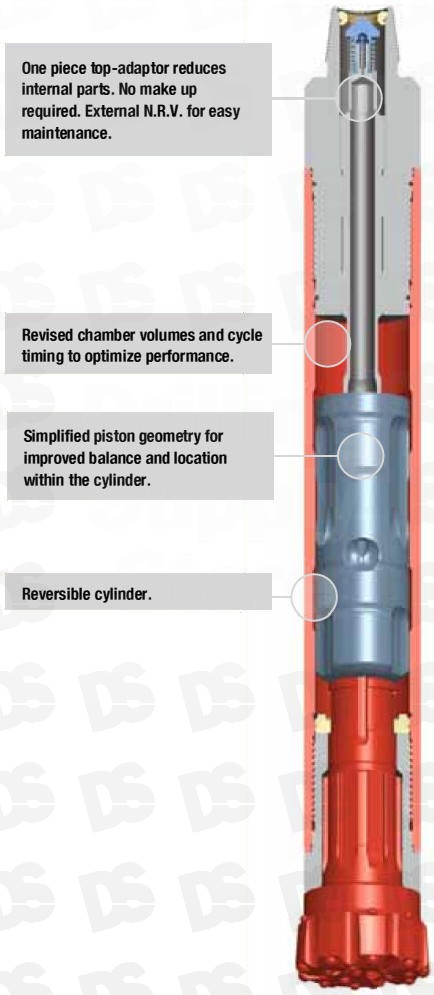

The Dominator 750 offers a class leading performance. The mining quarrying and waterwell industries will all benefit from the reliable design offered by a one piece top-adaptor/air distributor. A reversible cylinder is also fitted to the Dominator 750 to prolong hammer life and reduce costs. A few simple tools are required to maintain and service the hammer which makes this hammer user-friendly.

Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 192 mm - 300 mm (7 1/2 - 12").
Available Shanks: Sandvik Mission A63-15/SD8

Description

Details

HAMMER OVERVIEW
Hammer Type
Dominator 750
Part Number
600243
  Shank
Sandvik Mission A63-15/SD8
  Top Thread
4 1/2" Api Reg Pin
  Flat Hammer Size
115 mm (4.528")
  Weight
165 kg
  Outside Diameter
172 mm (6.772")
  Make Up Length
1232 mm (48.504")
  Recommended Minimum Thrust
800 kg (1760 lbs)
  Recommended Maximum Thrust
2000 kg (4400 lbs)

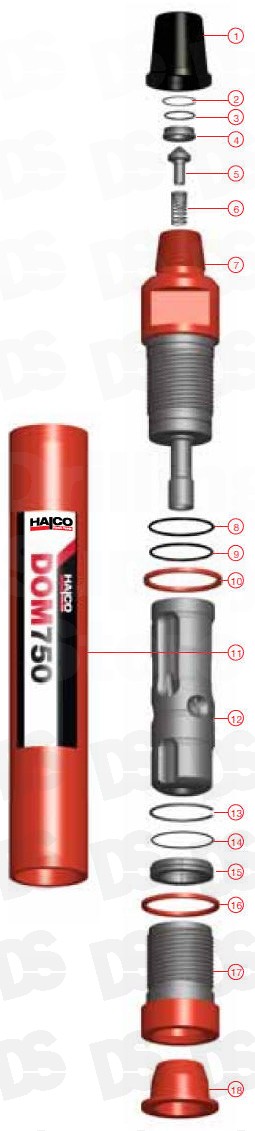

PART LIST
Hammer Type
Dominator 750
Shank
A63-15/SD8
Model Number
600243

Item
Part Number
  Description
1
207295
  Thread Protector

2
783034
  Snap Ring

3
768150
  ORing

4
602887
  N.R.V. Seat

5
602285
  N.R.V. Valve

6
760117
  N.R.V. Spring

7
602882
  Top-Adaptor

8
768151
  ORing

9
768152
  ORing

10
602885
  Spacer

11
602880
  Cylinder

12
603382
  Piston

13
783033
  Snap Ring

14
768149
  ORing

15
602886
  Bit Retaining Ring

16
602885
  Chuck Spacer

17
602881
  Chuck

18
741044
  Cap

SK
SK23
  Service Kit

RK
RK37
  Repair Kit

601828
  Foot Valve

601829
  F/v Tool - Body

601569
  F/v Tool - Pusher


DRILL BITS
Bit
Diameter
Face
Buttons
Weight (kg)
Part No
mm
inch
Design
Type
Qty/Dia(mm)
Sandvik Mission A63-15/SD8 Shank
650959
200
7 7/8
Concave
Domed
12x16 mm/9x20 mm/6x13 mm
43

653404
200
7 7/8
Concave
Domed
12x16 mm/9x20 mm/6x13 mm
43

650375
203
8
Concave
Domed
10x20 mm / 14x16 mm
43.5

650705
222
8 3/4
Concave
Domed
24 x 20 mm
46.5

650606
254
10
Concave
Domed
11x16 mm / 18 x 20 mm
56.5

653105
270
10 5/8
Concave
Domed
34 x 18 mm
57

650039
300
12
Concave
Domed
29 x 20 mm
84.5
