Halco Dominator 800

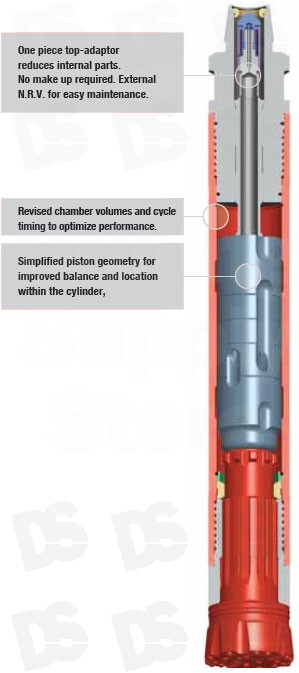

The Super Dominator 800 is a general purpose hammer suitable for a wide range of air pressures. The Dominator 800 is a low to mid range air volume hammer. The one piece top-adaptor with N.R.V. (Non-Return-Valve) makes it easy to maintain and service the hammer. The Dominator 800 unique’s air distributor finger is integral with the top-adaptor and reduces requirements for shimming. The Dominator 800 has no liner which increases the piston blow energy and reduces parts required. This hammer is suitable for use with overburden systems.
Dominator 800 is available in three different shank types (see below).
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 200 - 311 mm (7 7/8 - 14 1/4").
Available Shanks:
Halco Mach 80
IR DHD 380
Sandvik Mission A63-15/SD8
Description

Details

HAMMER OVERVIEW
Hammer Type Dominator 800 Dominator 800 Dominator 800
Part Number 600310 600308 600309
Shank Halco Mach 80 Sandvik Mission A63-15/SD8 Ingersoll Rand DHD 380
Top Thread 4 1/2" Api Reg Pin
Flat Hammer Size 156 mm (6.142")
Weight 175 kg 180 kg 181 kg
Outside Diameter 182 mm (7.165")
Make Up Length 1254 mm (49.369") 1266 mm (49.841") 1254 mm (46.456")
Recommended Minimum Thrust 800 kg (1760 lbs)
Recommended Maximum Thrust 2000 kg (4400 lbs)

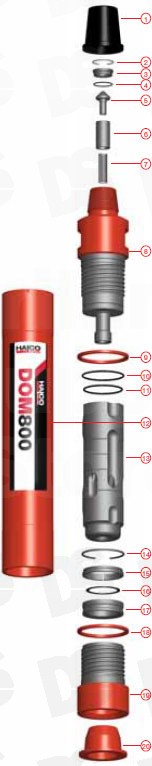

PART LIST
Hammer Type Dominator 800 Dominator 800 Dominator 800
Shank Halco A63-15 / SD8 DHT 380
Model Number 600310 600308 600309
Item Description Part Number
1 Thread Protector 207295
2 Snap Ring 783034
3 N.R.V. Seat 602887
4 ORing 768150
5 N.R.V. 602285
6 N.R.V. Cover 603696
7 N.R.V. Spring 760108
8 Top-Adaptor 603607
9 Spacer 603576
10 ORing 768103
11 ORing 768145
12 Cylinder 603687
13 Piston 603754 603747 603755
14 Snap Ring 783015
15 Spacer - - 602840
16 Containment Band 603549 768102 603549
17 Bit Ring 601677 601839 603043
18 Chuck Spacer 603576
19 Chuck 603685 603686 603495
20 End Cap 741034 741034 741027
SK Service Kit SK25 SK51 SK25
RK Repair Kit RK78 RK79 RK64
Foot Valve 601675 601828 601819
F/V Tool - Body 601820 601829 601820
F/V Tool - Pusher 601569

DRILL BITS
Bit Diameter Face Button Weight
Part No mm inch Design Type Qty ( kgs )
Halco Mach 80 Shank
650980 203 8 Convex Domed 21 x 20 mm 51.5
650938 216 8 1/2 Convex Domed 21 x 20 mm 53
650571 225 8 7/8 Convex Domed 26 x 16 mm 55.5
650746 254 10 Convex Domed 21 x 20 mm 65
653040 300 11 7/8 Flat Domed 38 x 20 mm 83.3
650365 311 12 1/4 Convex Domed 29 x 20 mm 83
650908 375 14 3/4 Flat Domed 40 x 20 mm 121
Sandvik Mission A63-15/SD8 Shank
650959 200 7 7/8 Concave Domed 12x16 mm/9x20 mm/6x13 mm 43
650375 203 8 Concave Domed 10x20 mm / 14x16 mm 43.5
650693 216 8 1/2 Flat Domed 10 x 20 mm / 24 x 16 mm 47.6
650705 222 8 3/4 Concave Domed 24 x 20 mm 46.5
650357 241 9 1/2 Concave Domed 18 x 20 mm 52.5
650606 254 10 Concave Domed 11x16 mm / 18 x 20 mm 56.5
650037 254 10 Flat Domed 28 x 20 mm 58.3
653105 270 10 5/8 Concave Domed 34 x 18 mm 57
653104 280 11 Concave Domed 34 x 18 mm 59
650039 300 11 7/8 Flat Domed 29 x 20 mm 84.5
Ingersoll Rand Shank - DHD 380
650977 200 7 7/8 Concave Domed 31 x 16 mm 51.5
650373 203 8 Concave Domed 10 x 20 mm / 14 x 16 mm 51.5
650022 241 9 1/2 Concave Domed 10 x 16 / 18 x 20 mm 56.9
650389 254 10 Concave Domed 18 x 20 mm / 10x16 mm 64.5
650898 300 11 7/8 Convex Domed 34 x 20 mm 84.5
653041 311 12 1/4 Concave Domed 42 x 20 mm 84.1
