Halco Dominator 800LE

More Views

Halco Dominator 800LE

The Dominator 800 LE has been designed for high performance drilling in blast hole application in quarries and mines. Its operating characteristics are particularly suited to soft and un-consolidated ground conditions.

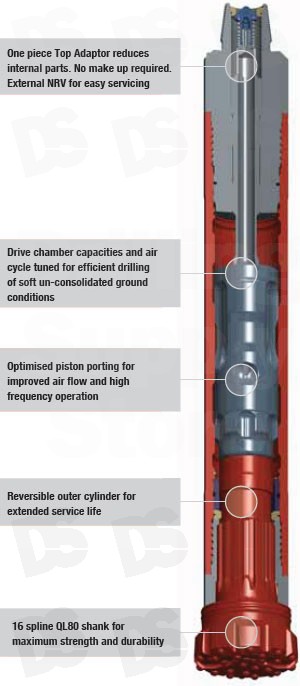

The single piece Top Adaptor/ Air distributor improves reliability and is easy to service. The outer cylinder is hardened for maximum durability and can be reversed to increase service life.

Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Available Shanks: IR QL 80.

Description

Details

HAMMER OVERVIEW
Hammer Type
Dominator 800 LE
Part Number
600396
  Shank
Ingersoll Rand QL 80
  Top Thread
4 1/2" Api Reg Pin
  Flat Hammer Size
127 mm (5")
  Weight
178 kg
  Outside Diameter
182 mm (7.165")
  Make Up Length
1244 mm (48.976")
  Recommended Minimum Thrust
800 kg (1760 lbs)
  Recommended Maximum Thrust
2000 kg (4400 lbs)

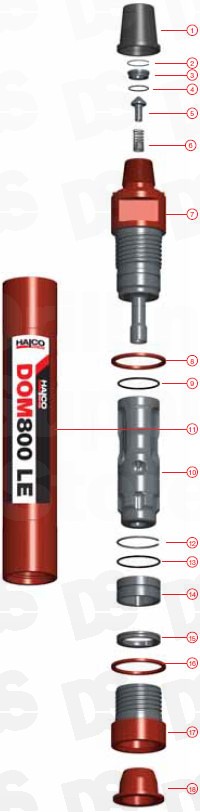

PARTS LIST
Hammer Type
Dominator 800 LE

Shank
IR QL 80

Model Number
600396

Item
Part Number
Description

1
207295
  Thread Protector

2
783034
  Snap Ring

3
602887
  N.R.V. Seat

4
768150
  O' Ring

5
602285
  Non Return Valve

6
760117
  N.R.V. Spring

7
604510
  Top-Adaptor

8
603576
  Spacer

9
768145
  O'Ring

10
604505
  Piston

11
604506
  Cylinder

12
783033
  Snap Ring

13
768151
  O' Ring

14
604511
  Bit Guide Bush

15
604347
  Bit Retaining Ring

16
603576
  Chuck Spacer

17
604507
  Chuck

18
741027
  End Cap

SK
SK71
  Service Kit

RK
RK120
  Repair Kit

603334
  Foot Valve

603342
  F/V Tool - Body

603341
  F/V Tool - Pusher



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/Dia
Size
(kg)
Ingersoll Rand Shank - QL 80
653062
222
8 3/4
Concave
Domed
14 x 18 mm / 10 x 18 mm Long

56.8

653239
254
10
Concave
Domed
34x18 mm / 12x13 mm Retracks

64

653254
270
10 5/8
Concave
Domed
42x18 mm / 12x13 mm Retracks

69.5

653263
270
10 5/8
Concave
Parabolic
42x18 mm / 12x13 mm Retracks

69.5
