Halco Dominator 880DW

More Views

Halco Dominator 880DW

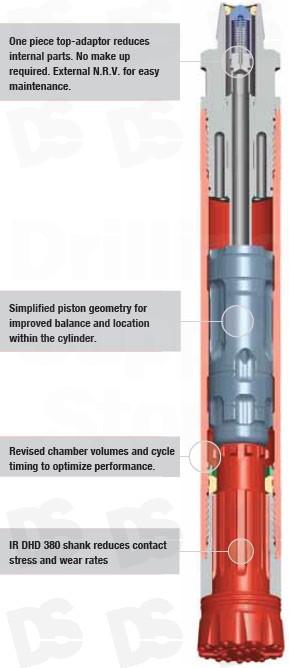

The Dominator 850 Deep-Well hammer has been specifically designed for drilling deep holes under a head of water. The one piece top-adaptor with N.R.V. (Non-Return-Valve) makes it easy to maintain and service the hammer. The wide body diameter of the Dominator 880 DW allows for an increased piston weight and therefore an improved performance. A variable choke for increased air volume can be fitted to the Dominator 880 DW to suit compressor volume outputs.

Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 200 - 311 mm (7 7/8 - 12 1/4").
Available Shanks: IR DHD 380.

Description

Details

HAMMER OVERVIEW
Hammer Type
Dominator 880DW
Part Number
600261
  Shank
Ingersoll Rand DHD 380
  Top Thread
4 1/2" Api Reg Pin
  Flat Hammer Size
156 mm (6.142")
  Weight
177 kg
  Outside Diameter
182 mm (7.165")
  Make Up Length
1263 mm (49.724")
  Recommended Minimum Thrust
800 kg (1760 lbs)
  Recommended Maximum Thrust
2000 kg (4400 lbs)

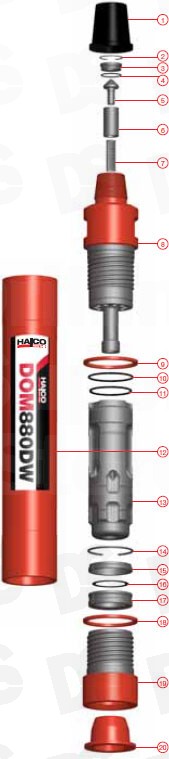

PARTS LIST
Hammer Type
Dominator 880DW

Shank
DHD 380

Model Number
600261

Item
Part Number
Description

1
207295
  Thread Protector

2
783034
  Snap Ring

3
602887
  N.R.V. Seat

4
768150
  O' Ring

5
602285
  Non Return Valve

6
603696
  N.R.V. Cover

7
760108
  N.R.V. Spring

8
603498
  Top-Adaptor

9
603576
  Spacer

10
768103
  O'Ring

11
768145
  O'Ring

12
603496
  Cylinder

13
602743
  Piston

14
783015
  Snap Ring

15
602840
  Spacer

16
603549
  Containment Band

17
603043
  Bit Ring

18
603576
  Chuck Spacer

19
603495
  Chuck

20
741027
  End Cap

SK
SK25
  Service Kit

RK
RK64
  Repair Kit

603334
  Foot Valve

603342
  F/V Tool - Body

6013341
  F/V Tool - Pusher



DRILL BITS
Bit
Diameter
Face
Buttons
Over
Weight

Part No
mm
inch
Design
Type
Qty/Dia
Size
(kg)
Ingersoll Rand Shank - DHD 380
650977
200
7 7/8
Concave
Domed
31 x 16 mm

52.0

650373
203
8
Concave
Domed
10 x 20 mm / 14 x 16 mm

51.5

650022
241
9 1/2
Concave
Domed
10 x 16 / 18 x 20 mm

56.9

650389
254
10
Concave
Domed
18 x 20 mm / 10x16 mm

64.5

650898
300
11 7/8
Convex
Domed
34 x 20 mm
Y
84.5

653041
311
12 1/4
Concave
Domed
42 x 20 mm
Y
84.1
