H core barrel
 | Wireline core barrel - H | ||||

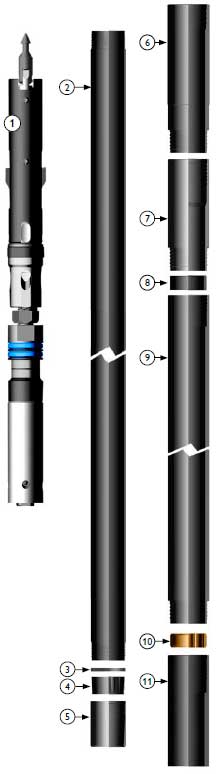

PART LIST | |||||
Item | Description | Part Number | Add to quote | ||
1-11 | H core barrel assembly 1,5 m (5 ft) | BF00003267 |  | ||
1-11 | H core barrel assembly 3,0 m (10 ft) | BB00001042 | | ||
1-5 | H inner tube assembly 1,5 m (5 ft) | BF00003286 | | ||
1-5 | H inner tube assembly 3,0 m (10 ft) | BF00003287 | | ||
1 | H/H3 head assembly | BB00001190 | | ||
H Inner Tube Components | |||||
Item | Description | Qty | Part Number | Add to quote | |
1 | Head assembly | 1 | BB00001190 | | |
2 | Inner tube 1,5 m (5 ft) | 1 | BA00000174 | | |
2 | Inner tube 3,0 m (10 ft) | 1 | BA00000175 | | |
3 | Stop ring | 1 | BA00000185 | | |
4 | Core lifter - fluted | 1 | BA00000186 | | |
5 | Core lifter case | 1 | BA00000188 | | |
H/H3 Outer Tube Components | |||||
Item | Description | Qty | Part Number | Add to quote | |
6 | Locking coupling - full hole | 1 | BA00000208 | | |
7 | Adapter coupling | 1 | BA00000195 | | |
8 | Landing ring | 1 | BA00000182 | | |
9 | Outer tube 1,5 m (5 ft) | 1 | BA00000199 | | |
9 | Outer tube 3,0 m (10 ft) | 1 | BA00000200 | | |
10 | Inner tube stabilizer | 1 | BA00000205 | | |
11 | Thread protector | 1 | BA00000204 | | |
Options to Standard Configuration | |||||
Item | Description | Part Number | Add to quote | ||
2 | Chrome plated - inner tube 1,5 m (5 ft) | BB00000139 | | ||
2 | Chrome plated - inner tube 3,0 m (10 ft) | BB00000140 | | ||
4 | Core lifter - smooth | BB00001038 | | ||
4 | Core lifter - slotted | BB00001001 | | ||
6 | Locking coupling - full hole, tanged, H | BB00000067 | | ||
6 | Locking coupling - full hole, HT | BB00000068 | | ||
6 | Locking coupling - full hole, tanged, HT | BB00000069 | | ||
6 | Locking coupling - full hole, HHD | BF00003472 | | ||
9 | Full hole outer tube 1,5 m (5 ft) | BF00002335 | | ||
9 | Full hole outer tube 3,0 m (10 ft) | BF00002332 | | ||
9 | Chrome plated full hole outer tube 3,0m(10ft) | BF00005285 | | ||
Extended Core Barrels | |||||
Item | Description | Part Number | Add to quote | ||
- | Inner tube coupling | BB00000070 | | ||
 | Wireline core barrel - H | ||||
PART LIST | |||||
Item | Description | Part Number | Add to quote | ||
1-26 | H/H3 head assembly | BB00001190 | | ||
H/H3 Head Components | |||||
Item | Description | Qty | Part Number | Add to quote | |
1 | Spearhead point | 1 | BA00000137 | | |
2 | Compression spring | 1 | BA00000179 | | |
3 | Detent plunger | 1 | BA00000161 | | |
4 | Coiled spring pin 7/16" x 1" | 1 | BA00000165 | | |
5 | Spearhead base | 1 | BB00001202 | | |
6 | Latch retracting case | 1 | BB00001189 | | |
7 | Spring pin 1/2" x 2-3/4" | 2 | BA00000177 | | |
8 | Latch spring | 1 | BB00000777 | | |
9 | Latch | 2 | BB00000667 | | |
10 | Coiled spring pin 1/2" x 2" | 1 | BB00001060 | | |
11 | Upper latch body | 1 | BB00001185 | | |
12 | Landing shoulder | 1 | BB00001212 | | |
13 | Stainless steel ball | 1 | BA00000132 | | |
14 | Bushing | 1 | BA00000131 | | |
15 | Lower latch body | 1 | BB00001191 | | |
16 | Nord-lock washer | 1 | BA00000332 | | |
17 | Lock nut | 1 | BA00000194 | | |
18 | Spindle | 1 | BA00000196 | | |
19 | Shut off valve - hard | 2 | BA00000181 | | |
20 | Valve adjusting washer | 2 | BA00000171 | | |
21 | Bearing | 2 | BA00000211 | | |
22 | Spindle bushing | 1 | BA00000190 | | |
23 | Bearing | 1 | BA00000163 | | |
24 | Compression spring | 1 | BA00000166 | | |
25 | Self locking nut | 1 | BA00000212 | | |
26 | Inner tube cap assembly | 1 | BA00000317 | | |
Options to Standard Configuration | |||||
Item | Description | Part Number | Add to quote | ||
19 | Shut off valve, soft | BA00000180 | | ||
Fluid Retention | |||||
Item | Description | Part Number | Add to quote | ||
- | Fluid retention kit | BF00004547 | | ||
 | Wireline core barrels - H | ||||||
PART LIST | |||||||
Item | Description | Part Number | Qty | ||||
H | Add to quote | H3 | Add to quote | ||||
- | Consumables kit | BB00001192 | | BB00001193 | | - | |
1 | Spearhead point | BA00000137 | | 1 | |||
2 | Compression spring | BA00000179 | | 2 | |||
3 | Detent plunger | BA00000161 | | 1 | |||
4 | Coiled spring pin | BA00000165 | | 2 | |||
5 | Spring pin | BA00000177 | | 4 | |||
6 | Latch spring | BB00000777 | | 2 | |||
7 | Latch | BB00000667 | | 4 | |||
8 | Coiled spring | BB00001060 | | 4 | |||
9 | Stainless steel ball | BA00000132 | | 1 | |||
10 | Bushing | BA00000131 | | 4 | |||
11 | Landing shoulder | BB00001212 | | 2 | |||
12 | Nord-lock washer | BA00000332 | | 1 | |||
13 | Lock nut | BA00000194 | | 1 | |||
14 | Shut off valve (hard) | BA00000181 | | 4 | |||
15 | Thrust bearing | BA00000211 | | 2 | |||
16 | Spindle bushing | BA00000190 | | 1 | |||
17 | Thrust bearing | BA00000163 | | 2 | |||
18 | Self locking nut | BA00000212 | | 2 | |||
19 | Hydraulic grease fitting | BA00000134 | | 2 | |||
20 | O ring | - | BA00000225 | | 5 | ||
21 | Stop ring | BA00000185 | | BA00000227 | | 5 | |
22 | Core lifter | BA00000186 | | BA00000228 | | 20 | |
23 | Core lifter case | BA00000188 | | BA00000226 | | 5 | |
24 | Landing ring | BA00000182 | | 2 | |||
25 | Inner tube stabilizer | BA00000205 | | 4 | |||
