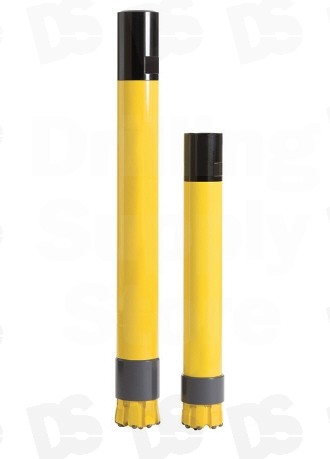

Secoroc COP RC45

Secoroc COP RC45

Secoroc COP RC45

Secoroc COP RC45

Reverse Circulation DTH-hammer

Secoroc RC 45 specifications
Product No.	89011483
Outside diameter, mm	120
Length without drill bit, mm	803
Weight without bit, kg (lBS)	41
Wrench flat top sub, mm	120
Bit size, min-max (mm)	125-140
Recommended bit sizes (mm)	127-136
Bit shank	RC 45
Piston weight (kg)	10,4
Backhead thread	4½" Remet Box
Working pressure, (bar (Psi))	10-35 (145-500)

COP RC45 air consumption
Air pressure	Air cons.	Impact rate		Penetration	Rec.
10	110	2100	35	100	85-95
15	175	2400	40	200	95-105
20	250	2820	47	533	110-125
25	335	3060	51	700	120-135
30	430	3240	54	933	130-145

Qty:

OR

| Add to Compare

BITS And SHROUDS

	Product Name	Part Number	Qty
	Epiroc RC Bit 125 mm	90029255
	Epiroc RC Bit 127 mm	90029256
	Epiroc RC Bit 130 mm	90029257
	Epiroc RC Bit 133 mm	90029258
	Epiroc RC Bit 136 mm	90029259
	Epiroc RC Bit 140 mm	90029260
	Epiroc RC Bit 165 mm	90029861
	Epiroc RC Bit 125 mm	90029886
	Epiroc RC Bit 127 mm	90029774
	Epiroc RC Bit 130 mm	90029887
	Epiroc RC Bit 133 mm	90029772
	Epiroc RC Bit 136 mm	90029888
	Epiroc RC Bit 140 mm	90029773
	Epiroc RC Bit 125 mm	90029608
	Epiroc RC Bit 127 mm	90029609
	Epiroc RC Bit 130 mm	90029610
	Epiroc RC Bit 133 mm	90029611
	Epiroc RC Bit 136 mm	90029612
	Epiroc RC Bit 140 mm	90029613
	Sleeve 124mm	89011487
	Sleeve 126mm	89011488
	Sleeve 129mm	89011489
	Sleeve 132mm	89011490
	Sleeve 135mm	89011491
	Sleeve 137mm	89011492
	Sleeve 139mm	89011493
	Sleeve 164mm	89012503

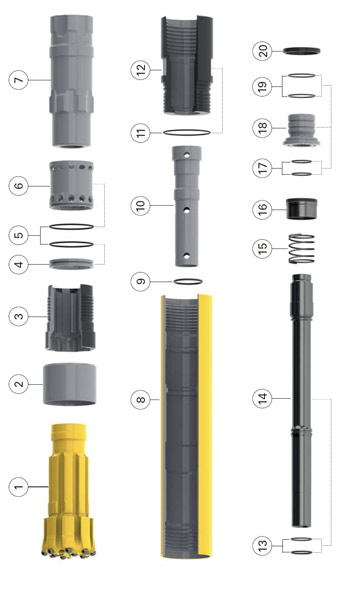

ASSEMBLY CHART

Details

Ref	Part no	Description
1	See chart	Bit
2	See chart	Sleeves standard
3	89012487	Chuck
4,5	89011485	Bit retaining ring assy
4	-	Bit retaining ring
5	86008885	O-ring (91.67*3.53)
5,6	89011484	Bit bearing ring assy
5	86008885	O-ring (91.67*3.53)
6	-	Bit bearing
7	89011497	Piston
8	89011482	PCasing
9	86008883	Bumper ring (56.52*5.33)
10	89011498	Control tube
11,12	89012364	Backhead assy
11	95086641	O-ring (101.19*3.53)
12		Backhead
13,14	89011499	Inner tube assy
13	86008882	O-ring (43*3)
14		Inner tube
15	89011504	Check valve spring
16	89011503	Check valve body
17,18,19	89012365	Inner tube adapter assy
17	86008882	O-ring (43*3)
18		Inner tube adapter
19	86008884	O-ring (57*3)
20	89012367	Crush ring

Complete hammer and maintenance kits	Product No
COP RC45 complete hammer	89011483
COP RC45 seal kit - included 5,9,11,13,17,19,20	89012400
COP RC45 check valve kit - included 15,16	89011569
COP RC45 rebuild kit - included 3,8,12, check valve kit, seal kit	89012401
