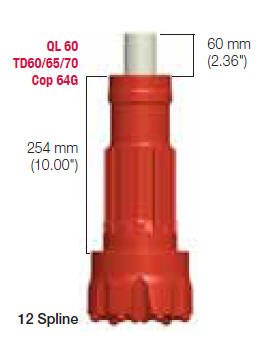

QL 60
 |  | Flat Face Alternative design for all rock conditions especially fractured and fissured rocks and changing formations. |
 | Concave Alternative design for all rock conditions particularly deep hole drilling can improve hole alignment as a result of inverted pilot. | |
 | Convex Strong design for all conditions especially hard abrasive rock.Good balance of fast drilling and long service life. |
 | Ballistic Inserts Suitable for soft and medium compact low abrasive rocks producing large cuttings. Not suitable for badly fractured rocks. |  | Domed Inserts Strong rugged shape for high performance and good service life in all conditions particularly suitable for very hard abrasive rocks and deep hole drilling. |  | Semi-Ballistic Inserts Suitable for all soft and medium rock conditions including fractured and fissured rocks. |
DRILL BITS | |||||||
Bit | Diameter | Face | Buttons | Over | Weight | ||
Part No | mm | inch | Design | Type | Qty/Dia | Size | (kg) |
| Hammer - SUPER DOMINATOR 650 HD QL 60 Hammer - GW 600 | |||||||
650094 | 156 | 6 1/8 | Concave | Domed | 16 x 16 mm | 23.2 | |
653139 | 165 | 6 1/2 | Concave | Domed | 18 x 18 mm | 24.4 | |
653160 | 171 | 6 3/4 | Convex | Domed | 19 x 18 mm | 25.3 | |
653128 | 178 | 7 | Concave | Domed | 8 x 20 mm + 11 x 16 mm | Y | 26.2 |
653227 | 190 | 7 1/2 | Concave | Domed | 24 x 16 mm | Y | 31.7 |
653142 | 203 | 8 | Concave | Domed | 31 x 16 mm | Y | 34.1 |
653211 | 241 | 9 1/2 | Concave | Domed | 18 x 20 mm / 10 x 16 mm | Y | 39.5 |
| AVAILABLE SHANKS | ||||||
