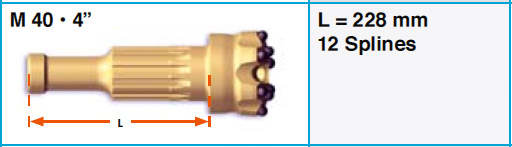

M 40
Bit shank identifcation chart
Diameter | Air holes | Gauge buttons | Button dia. mm | Weight | Part No. | Shank | ||||
mm | inch | gauge | front | Kg | lb | |||||
M40 | ||||||||||
Concave face / Ballistic button | M40 | |||||||||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-R48 | ||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-R55 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-R48 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-R55 | ||
Concave face / Spherical button | ||||||||||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-S48 | ||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-481B115-S65 | ||
121 | 4 3/4 | 2 | 8 | 14 | 14 | 11 | 24 | 42-481B121-S48 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-S48 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-481B127-S65 | ||
130 | 5 1/8 | 2 | 8 | 16 | 13 | 14 | 31 | 42-4818130-S48 | ||
133 | 5 1/4 | 2 | 8 | 16 | 13 | 15 | 33 | 42-4818133-S48 | ||
Convex face / Ballistic button | ||||||||||
110 | 4 3/8 | 2 | 8 | 14 | 14 | 8 | 18 | 42-485B110-R48 | ||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-485B115-R48 | ||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-485B115-R55 | ||
121 | 4 3/4 | 2 | 8 | 14 | 14 | 11 | 24 | 42-485B121-R48 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-485B127-R48 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-485B127-R55 | ||
130 | 5 1/8 | 3 | 9 | 16 | 14 | 14 | 31 | 42-48L9130-R48 | ||
133 | 5 1/4 | 3 | 9 | 16 | 14 | 15 | 33 | 42-48L9133-R48 | ||
Flat face / Spherical button | ||||||||||
110 | 4 3/8 | 2 | 8 | 14 | 14 | 8 | 18 | 42-48FB110-S48 | ||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-48FB115-S48 | ||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-48FB115-S65 | ||
121 | 4 3/4 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-48FB121-S48 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-48FB127-S48 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-48FB127-S65 | ||
130 | 5 1/8 | 2 | 8 | 16 | 14 | 14 | 31 | 42-48F9130-S48 | ||
133 | 5 1/4 | 2 | 8 | 16 | 14 | 15 | 33 | 42-48F9133-S48 | ||
Concave face / Ballistic & Spherical buttons | ||||||||||
115 | 4 1/2 | 2 | 8 | 14 | 14 | 8,4 | 18 | 42-485B115-L55 | ||
127 | 5 | 2 | 8 | 14 | 14 | 12 | 26 | 42-485B127-L55 | ||
AVAILABLE SHANKS | ||||||
